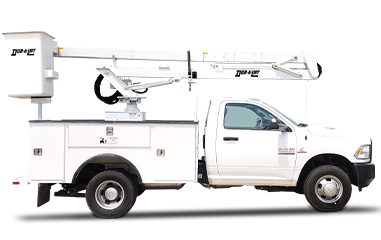

DSL SERIES
Models: DSL-32, DSL-36
Product Overview
- Articulating, non-overcenter
- Non-insulated
- Fiberglass or aluminum basket
- Max working height range: 34′ – 38′
- Max side reach range: 17′ 10″ – 19′ 10″
Product Specifications
| DFSL-32 | |
|---|---|
| Height to bottom of platform | 29′ |
| Working height | 34′ |
| Side reach | 17′ 10″ |
| Stowed travel height | 10′ |
| Basket capacity | 300# |
| Approximate weight | 1800# |
| Lower boom travel | 0 to 92 |
| Upper boom travel | 0 to 133 |
| Minimum GVWR | 11,000 GVWR |
| Upper boom fiberglass length | 9′ 4″ |

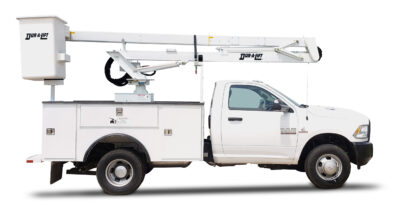

| DFSL-36 | |
|---|---|
| Height to bottom of platform | 33′ |
| Working height | 38′ |
| Side reach | 19′ 10″ |
| Stowed travel height | 10′ |
| Basket capacity | 300# |
| Approximate weight | 1850# |
| Lower boom travel | 0 to 92 |
| Upper boom travel | 0 to 133 |
| Minimum GVWR | 11,000 GVWR |
| Upper boom fiberglass length | 11′ 6″ |
Standard Features
CONTROLS
- Upper Control Override at the Turntable
- Three Control Levers at the Turntable and Basket, with deadman at the Basket
- Engine Start/Stop from Basket
HYDRAULIC SYSTEM
- Open Center Hydraulic System
- Rated Pressure is 2000 PSI
- Operating Pressure is 1800 PSI
MECHANICAL SYSTEM
- Basket leveling by fiberglass rods and chain parallelogram system with easy service access
- Rotation by hydraulic driven worm gear
- 370° Rotation
Safety Features
- Holding Valves in each cylinder
- Pressure Relief Valve
- Non-conductive hoses and fiberglass rods provide levelling and congrol through the insulated boom section
- 46 KV Category “C” Insulation
- Upper Boom Tie Down
- Safety Belt and Lanyard
Options
- Continuous Rotation
- Outriggers
- 12v DC Full Function Backup System
- Single Hand Control Lever
- Basket Liner
- Basket and Control Cover
- Hydraulic Tool Circuit at Basket and Pedestal
- Basket Tilt System
- Automatic or Two-Speed Throttle Advance
- Fan Belt or PTO Power
