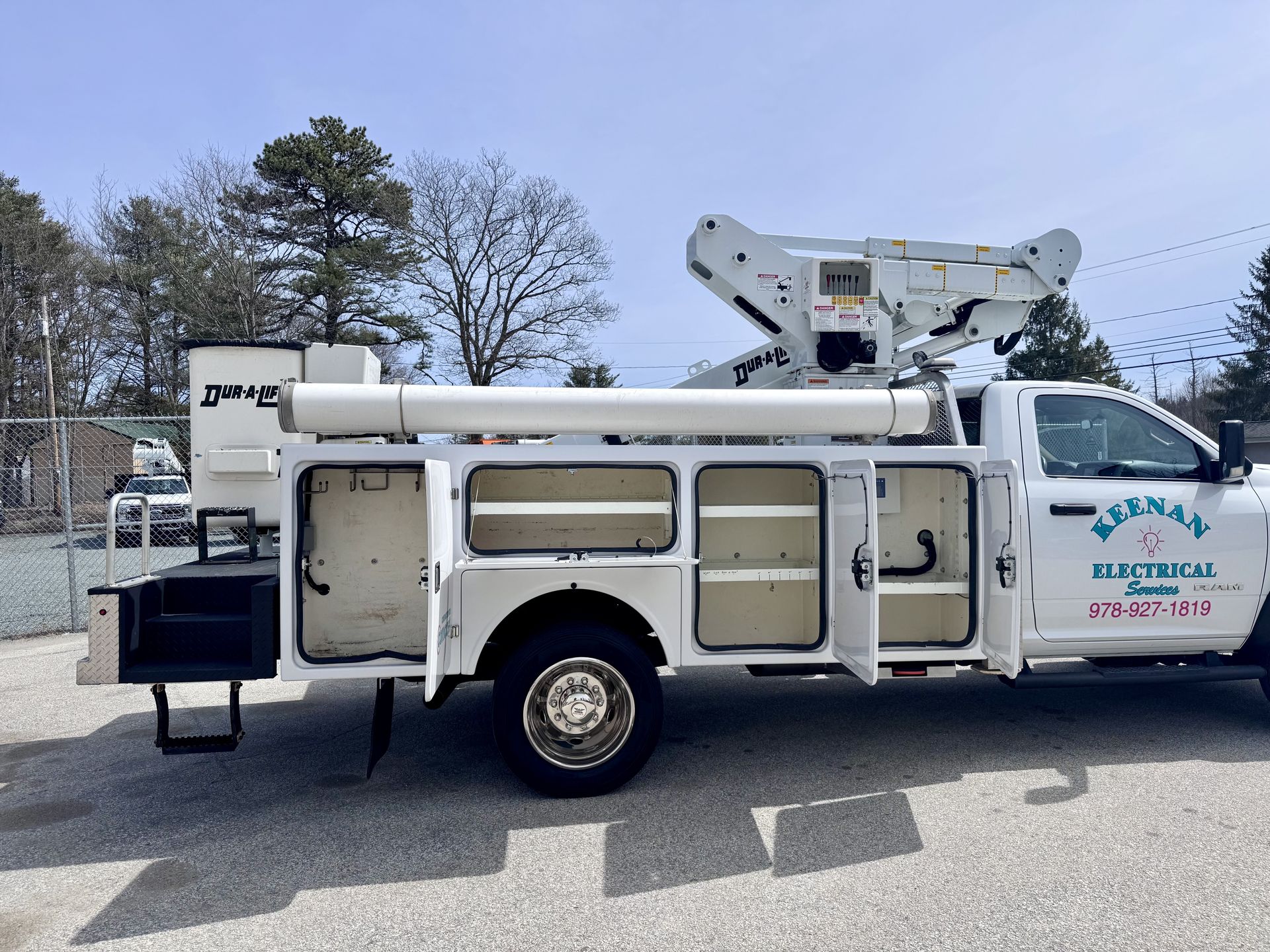

For Sale: DTAX-39FP (#A12132)
- 44′ Max Working Height
- 350# Basket Capacity
- Insulated
- 2020 Dodge Ram 5500
- Brand FX Fiberglass Service Body
To purchase, or for further inquiries, contact RBG, Inc. (located in Raymond, NH) by calling 603-895-3803.
Full Specifications
- Working Height: 44′
- Side Reach: 28′
- 46 kV, Category Insulation
- Platform capacity of 400 lbs./350 lbs. with liner.
- Bucket mounted controls to include:
- 3 Axis Single Hand Control
- Tool selector
- Hydraulic tool outlets with fittings
- Emergency Power
- Engine Start/Stop
- Bucket Cover
- Bucket Liner
- 180º platform rotator.
- Full pressure turret mounted lower controls with override.
- Non-Continuous rotation.
- Five GPM open center hydraulic system
- Chassis insulating system
- Lower Boom Insulating Section
- Fiberglass inner telescopic boom.
- Non-relube bearings used throughout.
- Integral hydraulic oil reservoir with dual sight gauges and 17 gallon capacity.
- Closed 24” x 30” x 42” fiberglass platform with one curbside step.
- Platform cover, nylon/vinyl, 24” x 24”
- Platform liner 24” x 30” x 42”
- Emergency Power Insulated 12V DC hydraulic system.
- Master / Slave hydraulic leveling with upper and lower control to tilt for cleanout or rescue.
- Slimline H-frame outriggers, located front of body.
- No loss of compartmentation
- No extension into the lane of travel
- Outrigger/Lift Interlocks
- Upper boom storage cradle with ratchet type tie down strap and tubular rubber platform support.
- Body belt and lanyard.
- Standard white urethane paint.
- Two operator’s manuals and two service manuals.
- ANSI A92.2 Data plate.
- 10 Gallon internal hydraulic tank
- PTO operated hydraulic pump
