Cable Placer

◼ Telescopic articulated or telescopic
◼ Non-insulated
◼ Hot-dipped, galvanized basket
◼ 400# of side pull, 50# of down pull
◼ Fairleads for cable lashing
◼ Direct communication between operator and driver
◼ Operate in stationary and mobile mode

Now available in two sizes!

Cable Placer
  • Specifications
  • Photos
  • Videos
  • Builds

DCP-36 & DCP-29

CABLE PLACER
Product Overview
  • Telescopic articulated or telescopic
  •  Non-insulated
  • Hot-dipped, galvanized basket (1-person)
  • 400 pounds of side pull, 50 pounds of down pull
  • Fairleads for cable lashing
  • Direct communication between operator and driver
  • Operate in stationary and mobile mode
  • Max working height: 41′
  • Max side reach: 26’6″

Product Specifications
  SPECIFICATIONS   DCP-36
Working height 41′
Side reach 26’6″
Stowed travel height 10’1″
Basket capacity 350#
Approximate weight 2675#
Articulating arm travel -6 to 83
Main boom travel -25 to 75
Extension travel 110.5″
Side pull 400#
Down pull 50#



  SPECIFICATIONS   DCP-29
Working height 34′
Side reach 22’6″
Stowed travel height 10’5″
Basket capacity 350#
Approximate weight 2125#
Articulating arm travel
Main boom travel -25 to 75
Extension travel 110.5″
Side pull 400#
Down pull 50#
Standard Features
  • Operate in stationary and mobile mode
  • Steel extension boom
  • 24” x 30” x 42” steel galvanized basket with Fairleads
  • Yoke end mounted walk-in basket with door
  • 370° hydraulic limit, non-continuous rotation
  • Dual cross over relief reduces rotation overloads
  • Hydraulic leveled basket

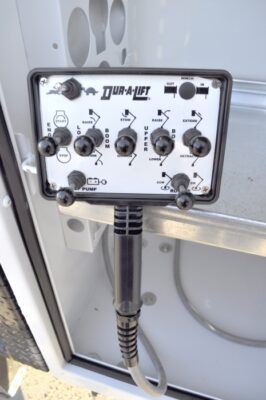

  • Pistol grip lower remote control-boom functions, lower stow, start/stop, two speed
  • Single-hand upper control joystick
  • Upper and lower basket to cab intercom communication system
  • 110 volt outlet at basket
  • Open center hydraulic system

*Mobile mode speeds up to 5 MPH
