DPM2 Series (MH, DU)

◼ Top-mounted jib/winch, 1000#
◼ Insulated or non-insulated
◼ Fiberglass or aluminum basket
◼ 2 basket size options (DU, MH)
◼ 180-degree basket rotator
◼ Basket elevator option

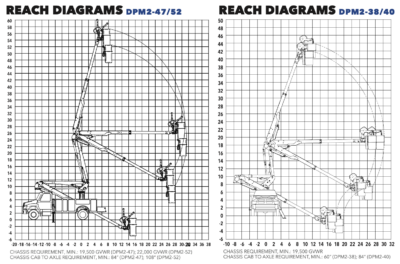

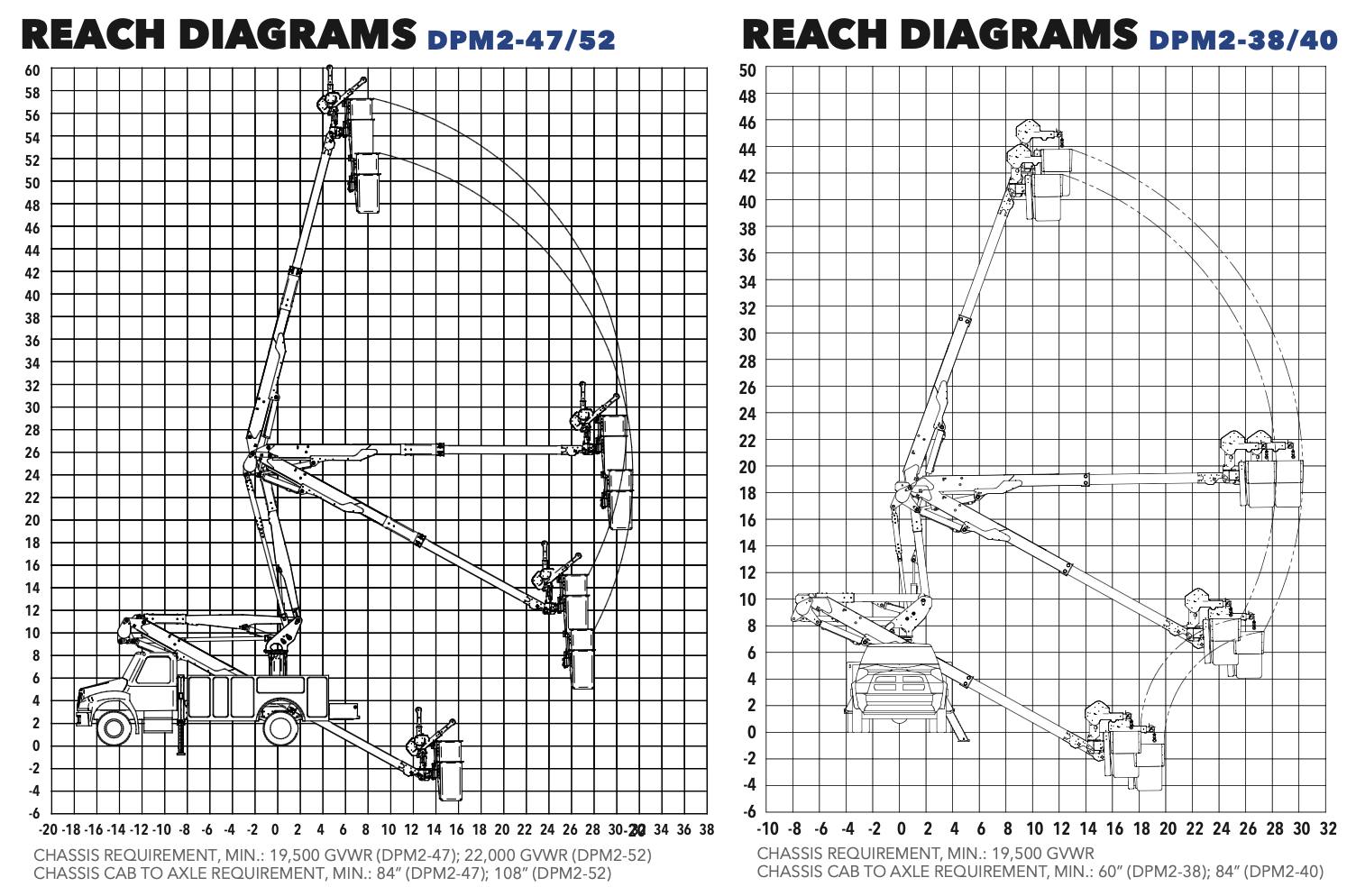

Max working height / side reach:
    DPM2-52: 59′ / 31’6″
    DPM2-47: 54′ / 31’6″
    DPM2-40: 47′ / 31’6″
    DPM2-36: 43′ / 27’6″

  • Specifications
  • Photos
  • Videos
  • Builds

DPM2 SERIES (MH, DU)

Models: DPM2-36, DPM2-40, DPM2-47, DPM2-52
PRODUCT OVERVIEW
  • Telescopic articulating, material handling
  • Top-mounted jib/winch, 1000#
  • Insulated or non-insulated
  • Fiberglass or aluminum basket
  • 2 basket size options (DU, MH)
  • 180-degree basket rotator
  • Basket elevator option
  • Max working height range: 43′ – 59′
  • Max side reach range:  27′ 6″ – 31′ 6″
Specifications
Product DPM2-36
Height to bottom of platform* 38′
Working height* 43′
Side reach 27′ 6″
Stowed travel height 10′ 6″
Platform capacity (MH) 400#
Platform capacity using jib (DU) 400#
Platform capacity not using jib (DU) 550#
Approximate weight 3700#
Articulating arm travel 0 to 75
Main Boom Travel -30 to 75
Extension travel 96″



Product DPM2-40
Height to bottom of platform* 42′
Working height* 47′
Side reach 31′ 6″
Stowed travel height 10′ 6″
Platform capacity (MH) 400#
Platform capacity using jib (DU) 400#
Platform capacity not using jib (DU) 550#
Approximate weight 3900#
Articulating arm travel 0 to 75
Main Boom Travel -30 to 75
Extension travel 120″



Product DPM2-47
Height to bottom of platform* 49′
Working height* 54′
Side reach 31′ 6″
Stowed travel height 10′ 5″
Platform capacity (MH) 400#
Platform capacity using jib (DU) 400#
Platform capacity not using jib (DU) 550#
Approximate weight 4300#
Articulating arm travel 0 to 75
Main Boom Travel -30 to 75
Extension travel 120″



Product DPM2-52
Height to bottom of platform* 54′
Working height* 59′
Side reach 31′ 6″
Stowed travel height 11′ 8″
Platform capacity (MH) 400#
Platform capacity using jib (DU) 400#
Platform capacity not using jib (DU) 550#
Approximate weight 4400#
Articulating arm travel 0 to 75
Main Boom Travel -30 to 75
Extension travel 120″

*Maximum height achievable with addition of the optional 22″ basket elevator

Standard Features
  • Proportional controls
  • Lower override controls
  • Engine start/stop from basket
  • Basket access from ground
  • Compensated upper boom
  • Insulated models available in category C or D
  • Hydraulic basket leveling
  • Continuous rotation
  • Joystick and lockout controls
  • 180º basket rotator
  • Up to 1000# top mounted jib and winch
  • 400# basket capacity
Aerial Options
  • High electrical resistant controls
  • Outriggers
  • Basket liner for fiberglass baskets
  • Fiberglass main and articulating booms
  • Tool circuits
  • D.C. backup system
  • Aluminum or fiberglass basket
  • 22” basket elevator
  • Non-insulated version available
  • 110v outlet at basket (non-insulated only)
BASKET CHOICES (MH, DU)

The DPM2 series material handling bucket truck is available with two basket configurations.

MH – Single Person, Material Handling (24″x30″ basket)
DU – Dual configuration: Dual Person OR Single Person, Material Handling (24″x42″ basket)

Fiberglass and aluminum options available in each style.

The style used is noted at the end of the model name.

INSULATED OR NON-INSULATED

The DPM2 lift is available in insulated or non-insulated formats.

DPM2 – insulated (Category C or D)
DPM2S – non-insulated

CUSTOMIZABLE

Ask about available chassis, body, basket, tail shelf, and accessory options to build the perfect bucket truck for your needs. Click the build tab to view DPM2 builds or click request a quote to get started.
