Bucket Truck Builds Dur-A-Lift

DPM Series (DP, SP)

◼ Single or double-person, personnel
◼ Insulated or non-insulated
◼ Fiberglass or aluminum basket
◼ 400# or 600# basket capacity
◼ 180-degree basket rotator

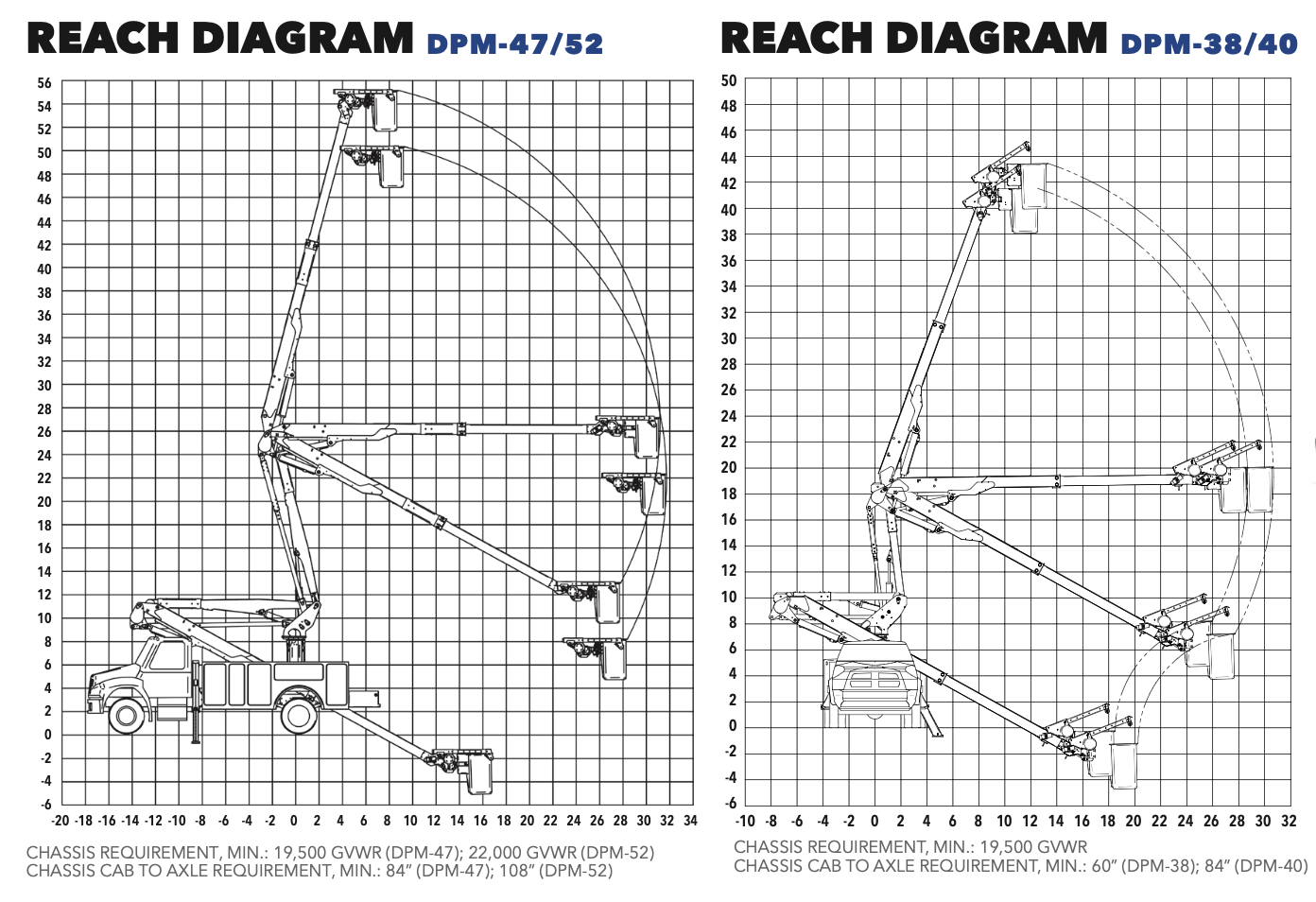

Max working height / side reach:
    DPM-52: 57′ / 31’6″
    DPM-47: 52′ / 31’6″
    DPM-40: 45′ / 31’6″
    DPM-36: 41′ / 27’6″

  • Specifications
  • Photos
  • Videos
  • Builds

DPM SERIES (DP, SP)

Models: DPM-36, DPM-40, DPM-47, DPM-52
Product Overview
  • Telescopic articulating bucket truck
  • Single (SP) or double-person (DP), personnel
  • Insulated or non-insulated
  • Fiberglass or aluminum basket
  • 400# or 600# basket capacity
  • 180-degree basket rotator
  • Max working height range: 41′ – 57′
  • Max side reach range: 27′ 6″ – 31′ 6″

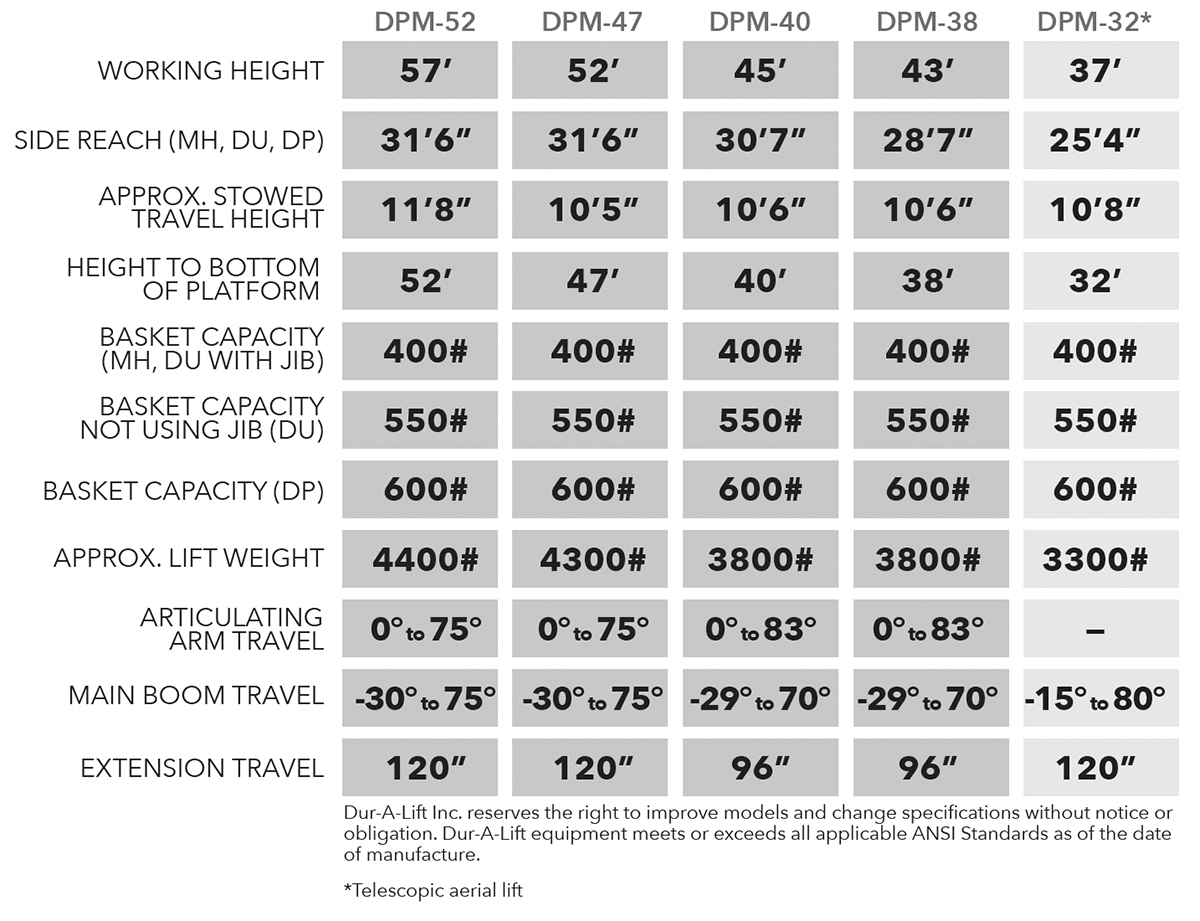

Product Specifications
DPM-36
Height to bottom of platform 36′
Working height 41′
Side reach (DP) 27′ 6″
Side reach (SP) 29′ 6″
Approximate stowed travel height 10′ 6″
Platform capacity (DP) 600#
Platform capacity (SP) 400#
Approximate weight 3700#
Articulating arm travel (DP) 0 to 75
Articulating arm travel (SP) 0 to 96
Main boom travel -30 to 75
Extension travel 96″
DPM-40
Height to bottom of platform 40′
Working height 45′
Side reach (DP) 31′ 6″
Side reach (SP) 33′ 6″
Approximate stowed travel height 10′ 6″
Platform capacity (DP) 600#
Platform capacity (SP) 400#
Approximate weight 3900#
Articulating arm travel (DP) 0 to 75
Articulating arm travel (SP) 0 to 96
Main boom travel -30 to 75
Extension travel 120″
DPM-47
Height to bottom of platform 47′
Working height 52′
Side reach (DP) 31′ 6″
Side reach (SP)
Approximate stowed travel height 10′ 5″
Platform capacity (DP) 600#
Platform capacity (SP)
Approximate weight 4300#
Articulating arm travel (DP) 0 to 75
Articulating arm travel (SP)
Main boom travel -30 to 75
Extension travel 120″
DPM-52
Height to bottom of platform 52′
Working height 57′
Side reach (DP) 31′ 6″
Side reach (SP)
Approximate stowed travel height 11′ 8″
Platform capacity (DP) 600#
Platform capacity (SP)
Approximate weight 4400#
Articulating arm travel (DP) 0 to 75
Articulating arm travel (SP)
Main boom travel -30 to 75
Extension travel 120″
Standard Features
  • Proportional controls
  • Lower override controls
  • Engine start/stop from the basket
  • Basket access from the ground
  • Compensated upper boom
  • Insulated models available in Category C, D and E
  • Hydraulic basket leveling
  • 180° basket rotator
Options
  • Continuous rotation
  • Joystick and lockout controls
  • Outriggers
  • Basket liners
  • Fiberglass main and articulating booms
  • Tool circuits
  • DC Backup
  • Basket covers
  • Fiberglass or aluminum baskets
BASKET STYLES (SINGLE OR DOUBLE PERSON)

The DPM telescopic articulating bucket truck is avaibale with two basket configurations.

SP – Single Person (24″x30″ basket; models 36 and 40)
DP – Dual person (24″x48″/42″ basket; models 36, 40, 47, 52)

Fiberglass and aluminum baskets available.

The style used is noted at the end of the model name.

INSULATED OR NON-INSULATED

The DPM lift is available in insulated or non-insulated formats.

DPM – insulated (Category C or D)
DPMS – non-insulated

Customizable

Ask about available chassis, body, basket, tail shelf, and accessory options to build the perfect bucket truck for your needs. Click the build tab to view DPM builds or click request a quote to get started.
