For Sale: DPM2-47DU (#5341N)
- 54′ Max Working Height
- 31’6″ Side Reach
- Insulated
- Ford F600 Chassis
- Knapheide steel service body

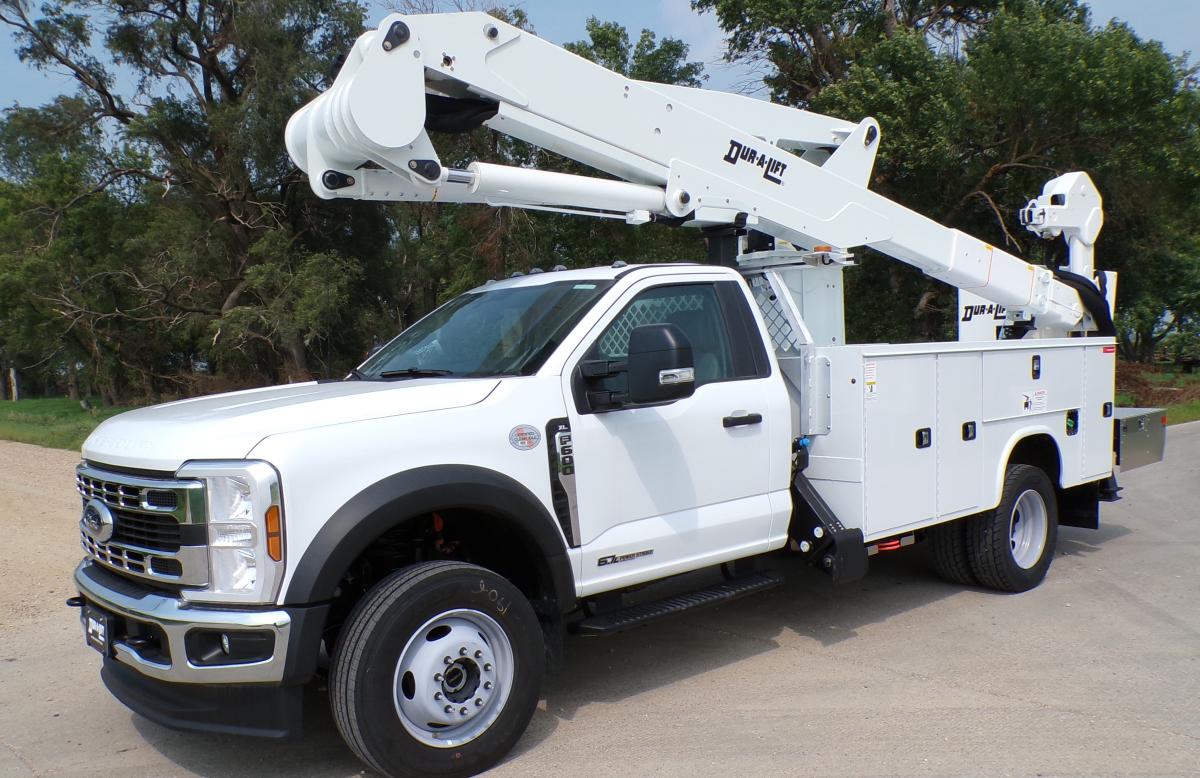

STOCK IMAGE
To purchase, or for further inquiries, contact Runnion Equipment (located in Hodgkins, IL) by giving them a call at 800-824-6704 or by emailing sales@runnionequipment.com
Full Specifications
- CAT C Insulated aerial device
- 52’ working height, 54’ working height with basket elevator
- 49’ height to bottom of basket
- Main boom fiberglass insert
- Chassis isolator insert
- 31.5’ side reach
- 24” x 42” x 42” fiberglass basket with step and cover, and liner
- 550# basket capacity when not using winch
- 400# basket capacity when using jib
- Hydraulically extendable jib. Jib is top-mounted with a maximum capacity of 1000#
- Hydraulic leveling, stow, and dump
- 180-degree basket rotator
- Body harness & lanyard
- Continuous rotation
- Transmission mounted P.T.O and pump
- 12 volt emergency backup system
- Upper & lower operation controls with emergency shut down and start/stop controls
- 4-axis HERC joystick control
- Tool circuit at bucket
- A-frame outriggers with outrigger interlock, mid mount and rear mount
- Four 18” x 18” composite outrigger pads with two outrigger pad holders
- Two (2) LED dome strobe lights
- Timbren load boosters on front and rear axle
- 36” x 94” aluminum tailshelf and through box
- Chrome grab handle
- 2” Pintle/Ball and 7 pin trailer receptacle
- Backup alarm
- Fire extinguisher
- Reflector kit
Knapheide steel service body (click for more info)
- 94” wide
- Compartments (both sides)
- Compartments depth 20”
- 1V – 34 ¼” L x 40” H
- 2V – 21” L x 40” H
- H – 52 ¾” L x 18 ½” H
- 3V – 23 ¼” L x 40” H
2026 Ford F600 4×4 (click for more info)
- 22,000 GVWR
- 6.7L 4V OHV Power Stroke V8 Turbo-Diesel B20 – 330 HP @ 2200 RPM,
950 lb/ft torque @ 1800 RPM - TorqShift 10-speed automatic transmission
- Engine block heater
- Front and rear 19.5” painted steel wheels
- Tires – 245/70Rx19.5
- Front axle 7,500 lb
- Rear axles 15,500 lb
- 169” wheelbase
- 4-wheel ABS brakes
- Air conditioning
- Chrome bumper and black grille with chrome accents
- 40-gallon fuel tank
- AM/FM stereo with LCD display and USB port
- 40/20/40 split bench seat- vinyl
- Color white
