For Sale:
DPM2-52DU
Unit number: #5348N
To purchase this ready-to-roll unit or request additional information, contact Runnion Equipment at (800) 824-6704. Whether you’re ready to buy or simply exploring your options, their team can answer your questions, provide pricing and availability, and help you take the next step.
Specifications

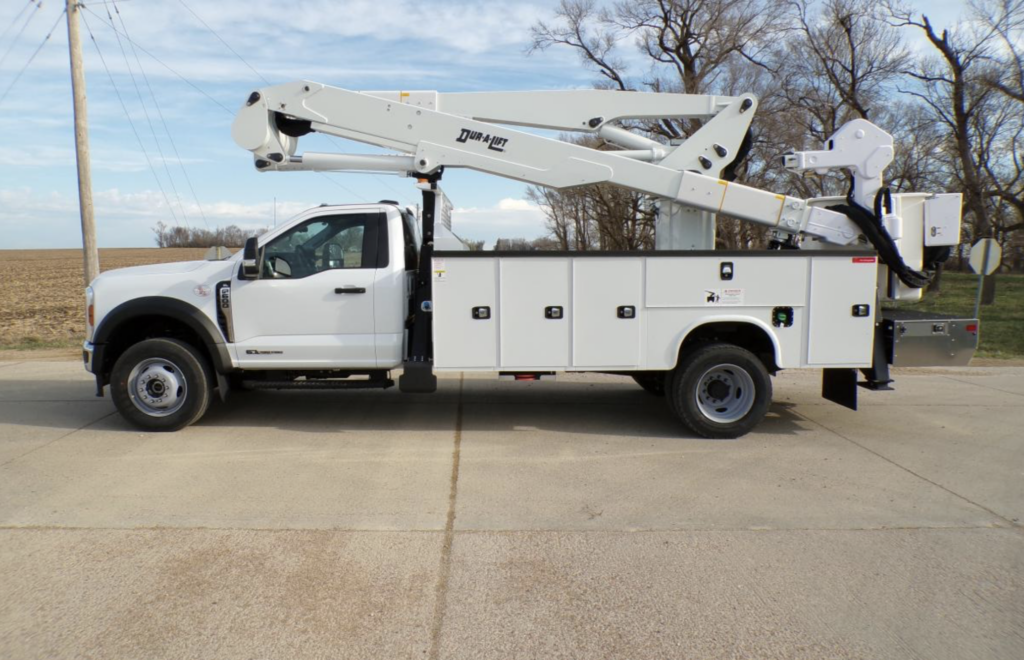

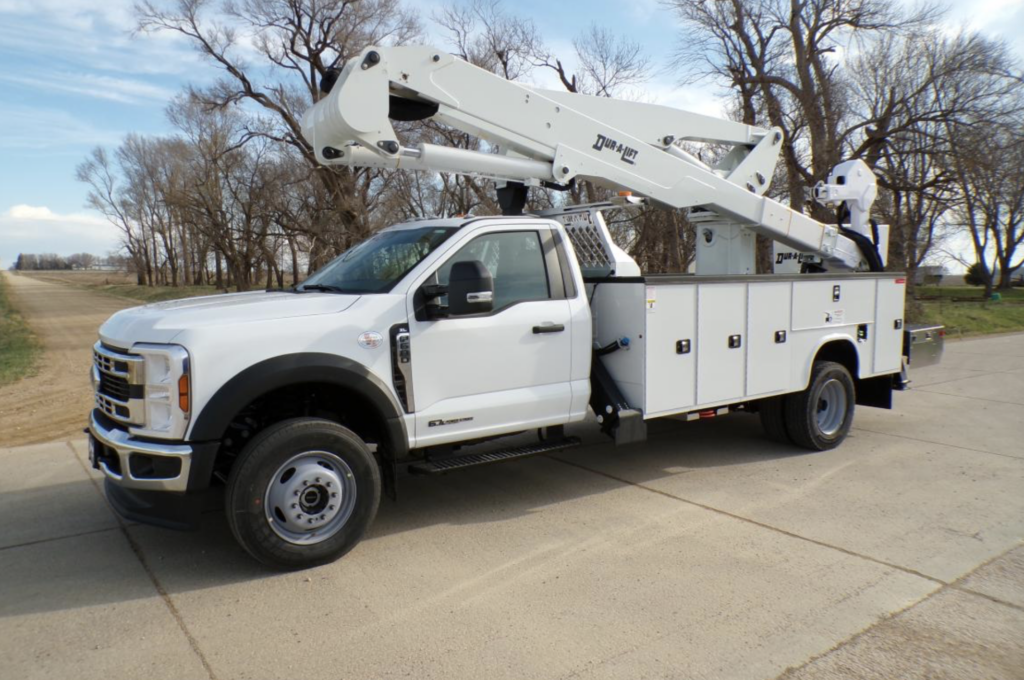

Aerial: DPM2-52DU
Chassis: 2026 Ford F600 4×4
Body: Knapheide steel service body
_______
Dur-A-Lift Model DPM2-52DU equipped as follows:
- CAT C Insulated aerial device
- 57’ working height, 59’ working height with basket elevator
- 52’ height to bottom of platform
- Main boom fiberglass insert
- Chassis isolator insert
- 31’6” side reach
- 24” x 42” x 42” fiberglass basket with step, including basket liner, clips, and cover
- 550# basket capacity when not using winch
- 400# basket capacity when using jib
- Hydraulically extendable jib. Jib is top-mounted with a maximum
capacity of 1000# - Hydraulic leveling, stow, and dump
- 180° basket rotator
- Inclinometer
- Body harness & lanyard
- Continuous rotation
- 12 volt emergency hydraulic backup system
- Upper & lower operation controls with emergency shut down and start/stop controls
- 4-axis HERC joystick control
- Hydraulic tool circuit at bucket
- 30 x 94 aluminum tailshelf & through box
- Timbren load boosters on front and rear axle
- A-frame outriggers with double outrigger interlock, mid mount and rear mount
- Four 18” x 18” composite outrigger pads with two (2) outrigger pad holders
- Two (2) LED dome strobe lights
- 5 lb fire extinguisher
- Triangle reflector kit
- Backup alarm
Knapheide service body equipped as follows:
- Compartments:
- Streetside Compartments:
- 1V – 22.25” W x 40” H
- 2V – 23” W x 40” H
- 3V – 26” W x 40” H
- H – 52.34” W x 18.5” H
- 4V – 25.25” W x 40” H
- Curbside Compartments:
- 1V – 22.25” W x 40” H
- 2V – 23” W x 40” H
- 3V – Access steps
- H – 54” W x 18.5” H
- 4V – 25.25” W x 40” H
- Non-slip coating applied to body floor, sidepack walls, sidepack tops, bulkhead, and tailshelf
2026 Ford F600 4×4 equipped as follows:
- 22,000 GVWR
- 6.7L Power Stroke V8 turbo diesel engine – 330hp at 2,200 (950 lb./ft. @ 1800 RPM)
- TorqueShift 10-speed automatic transmission
- Engine block heater
- Front and rear 19.5” steel wheels
- Tires – 245/70Rx19.5G BSW traction
- Front axle 7,500 lbs
- Rear axles 15,500 lbs
- 193” wheelbase
- 4-wheel ABS brakes
- Air conditioning
- Chrome front bumper
- Platform running boards
- Rearview camera
- Cruise control
- 40-gallon fuel tank
- SYNC communication, AM/FM stereo with MP3 player
- Power windows and locks with keyless entry
- 40/20/40 split bench seat- vinyl
- Color white
