DPM2-40DU

Work smarter in tighter spaces.

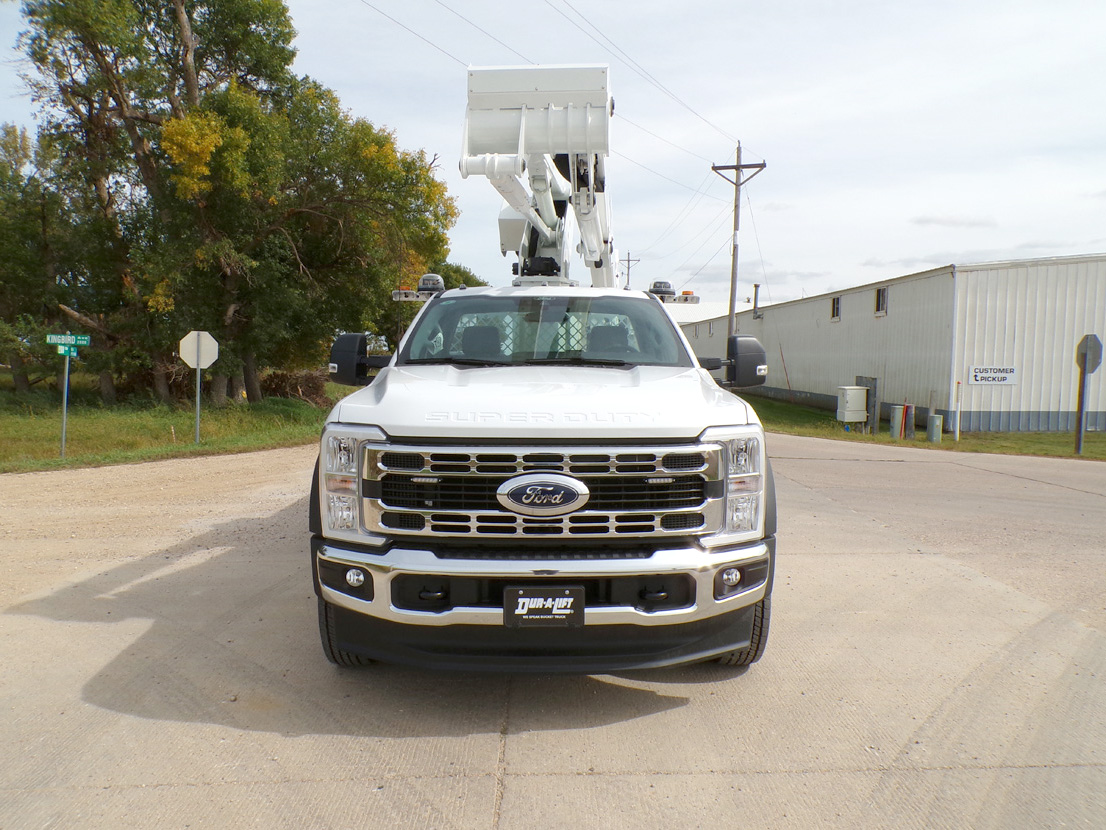

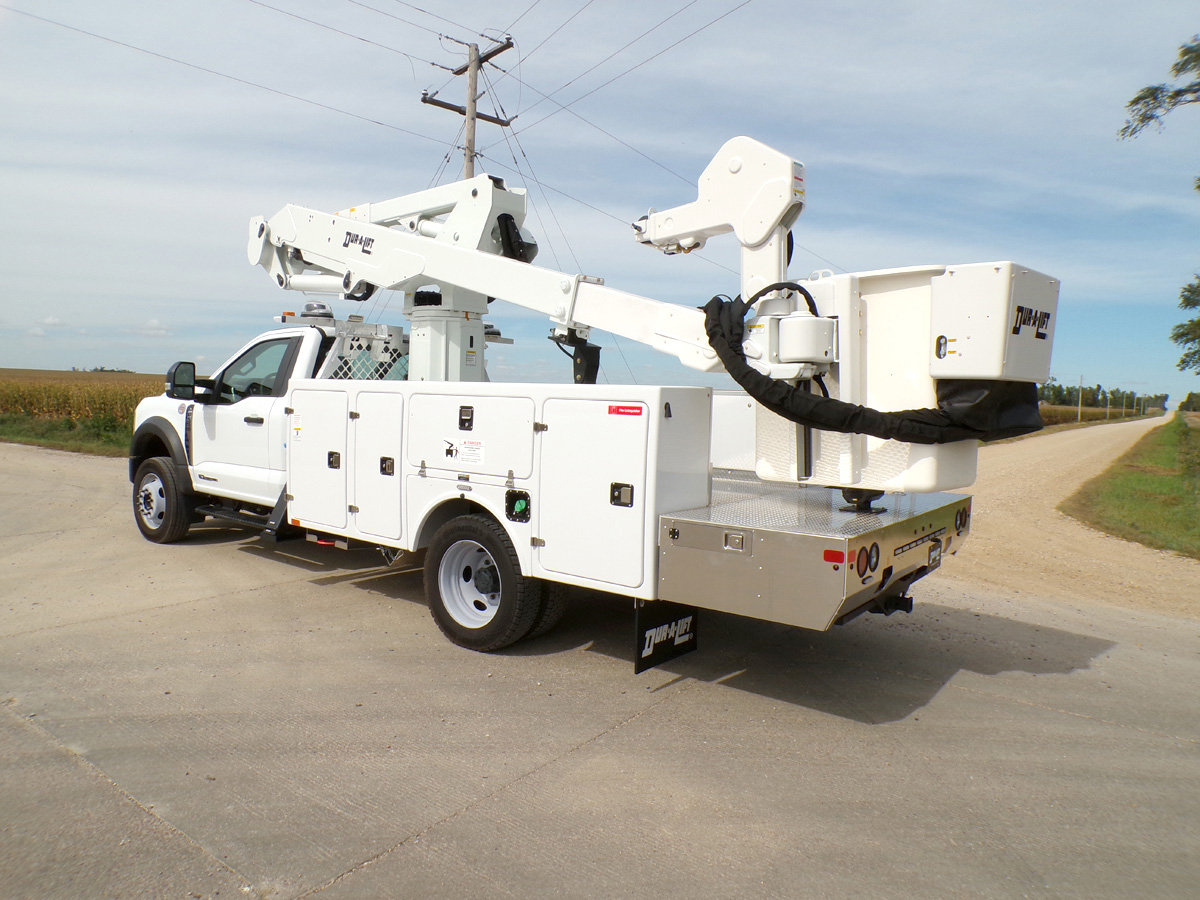

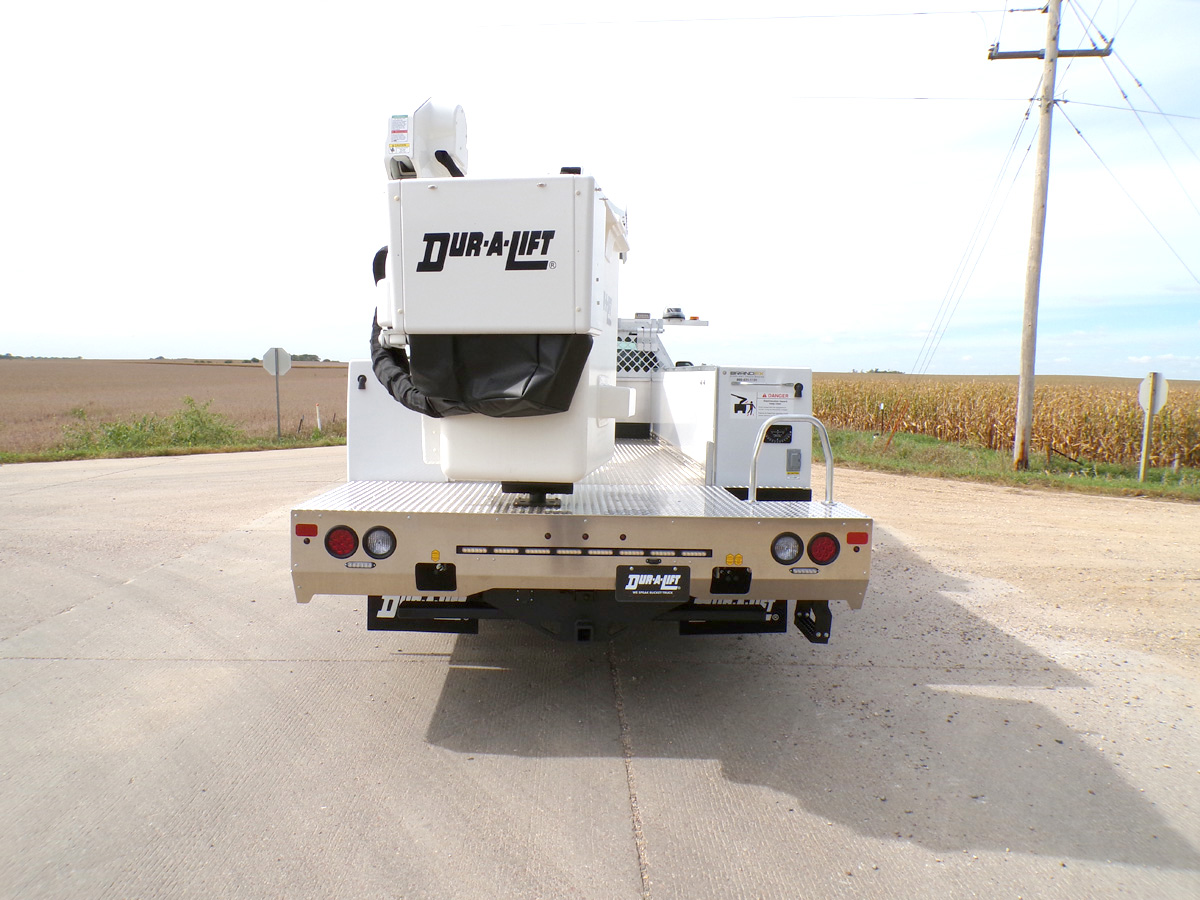

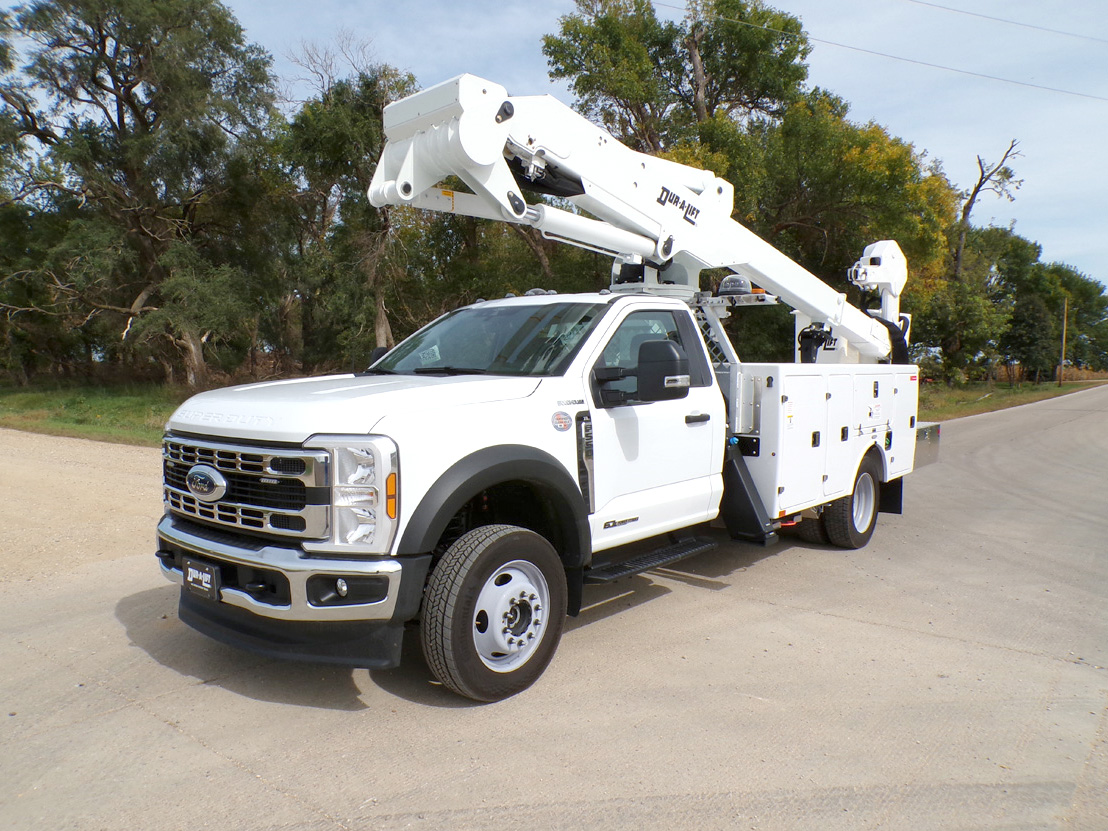

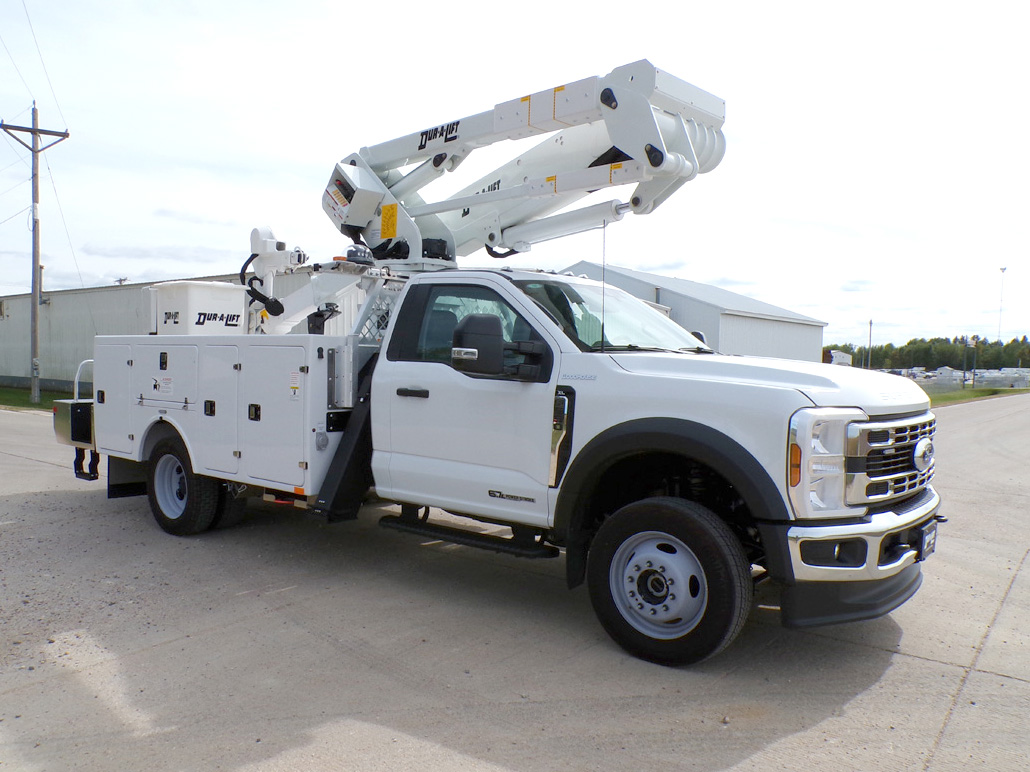

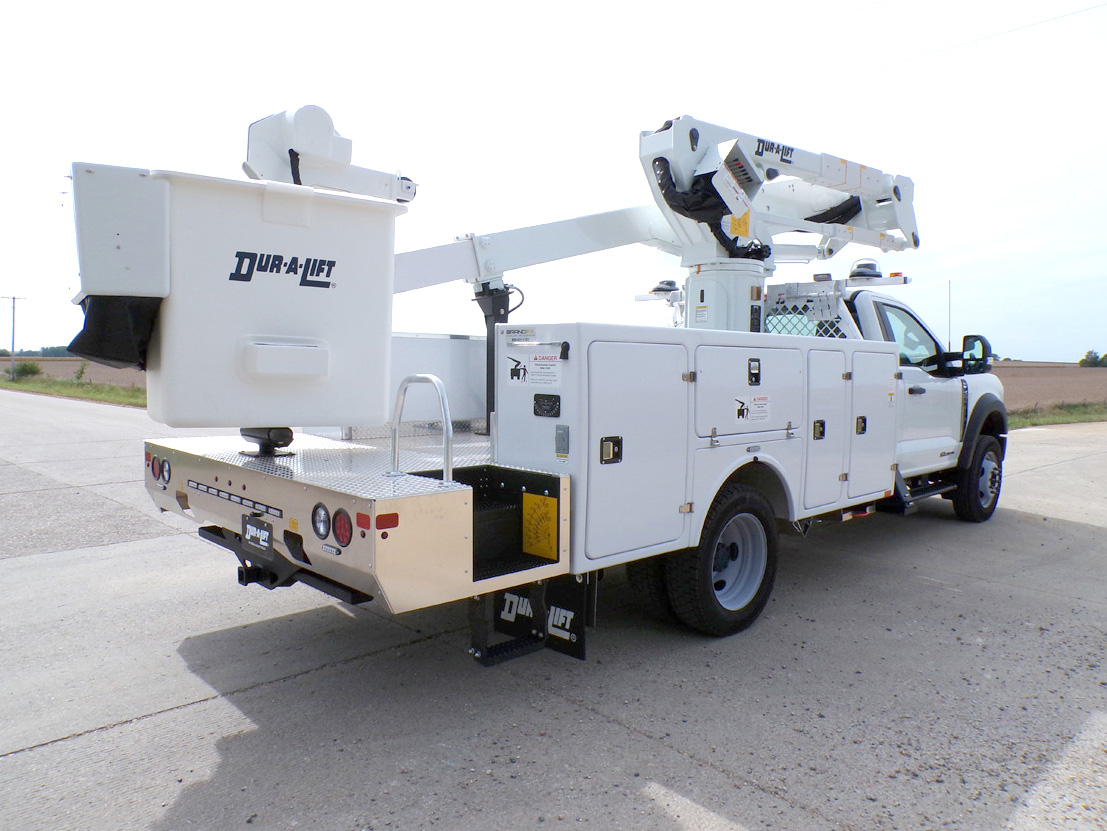

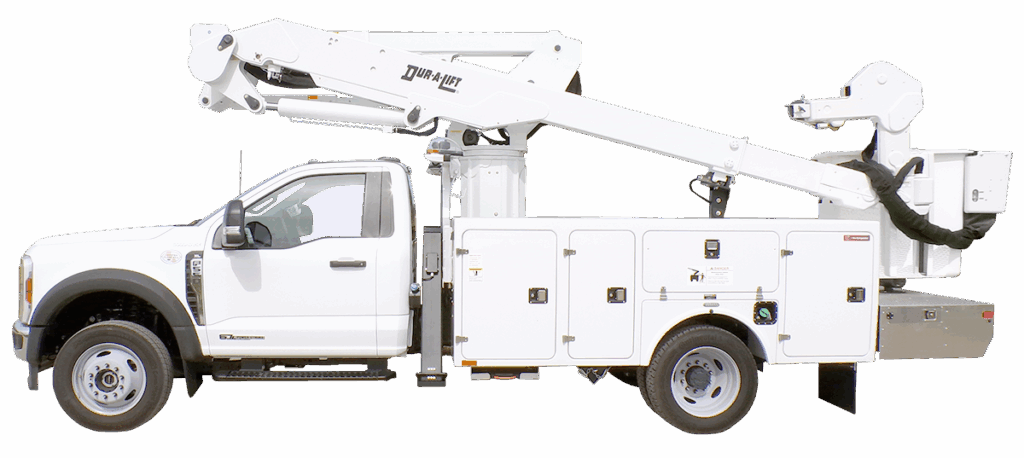

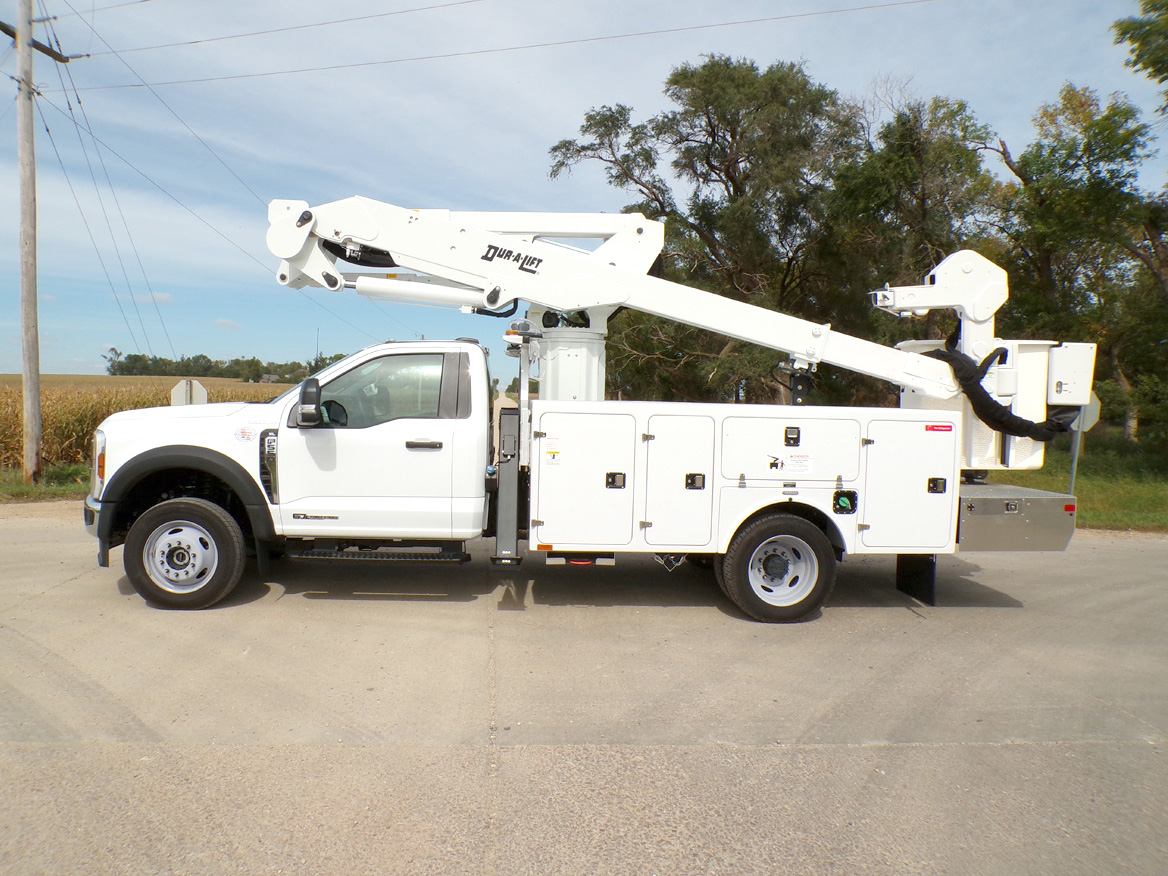

The DPM2-40DU is a telescopic articulating, Category “C” 46kV insulated aerial lift offering 47 feet of working height. It is equipped with a material-handling jib and winch with up to 1,000 lbs. capacity (DU or MH configurations). Mid-mount A-frame outriggers feature a 117.5″ spread at ground, providing a stable platform while maintaining a compact operational footprint. The jib rotates 320 degrees with 10 locking positions for flexible material placement, and a 22″ basket elevator provides added vertical reach. Mounted on a Ford F550 Diesel 4×4 chassis (84″ CA, 19,500 GVWR, 7,500 GAWR front axle) with a BrandFX 126″ body, this DPM2-40DU bucket truck build is engineered for versatile and efficient operation.

Compact stability. Heavy-duty performance.

The DPM2-40DU delivers 47 feet of working height, 1,000 lbs. of material-handling capacity, and a compact footprint that’s easy to position on the jobsite. Built for efficiency and versatility, this insulated aerial lift helps crews get more done with confidence.

Designed with you in mind

Every lift we build is engineered for the operator. From smart outrigger designs to versatile basket functions and added reach options, each feature is carefully designed to give you greater flexibility, efficiency, and confidence on the job.

MODIFIED A-FRAME OUTRIGGERS

The DPM2-40DU features a modified A-frame, mid-mount outrigger system that deploys to under 10 feet wide—narrower than a single traffic lane. This allows you to safely stabilize the truck without shutting down the entire road, making it easier to work in congested areas while keeping crews and traffic moving.

VERSATILITY IN THE AIR

This lift is built to adapt. Dur-A-Lift’s top-mounted jib design features locking positions on both sides of the basket, a full rotating basket, and a basket elevator all work together to give you unmatched flexibility overhead. Whether you need to approach the job from a new angle, adjust your workspace, or gain extra working height, this setup makes it easy to get the job done your way.

CLEARANCE MADE SIMPLE

Worried about jib clearance? No problem. Just raise the basket elevator to create a slimmer profile, giving you the access you need in tight spaces without sacrificing performance.

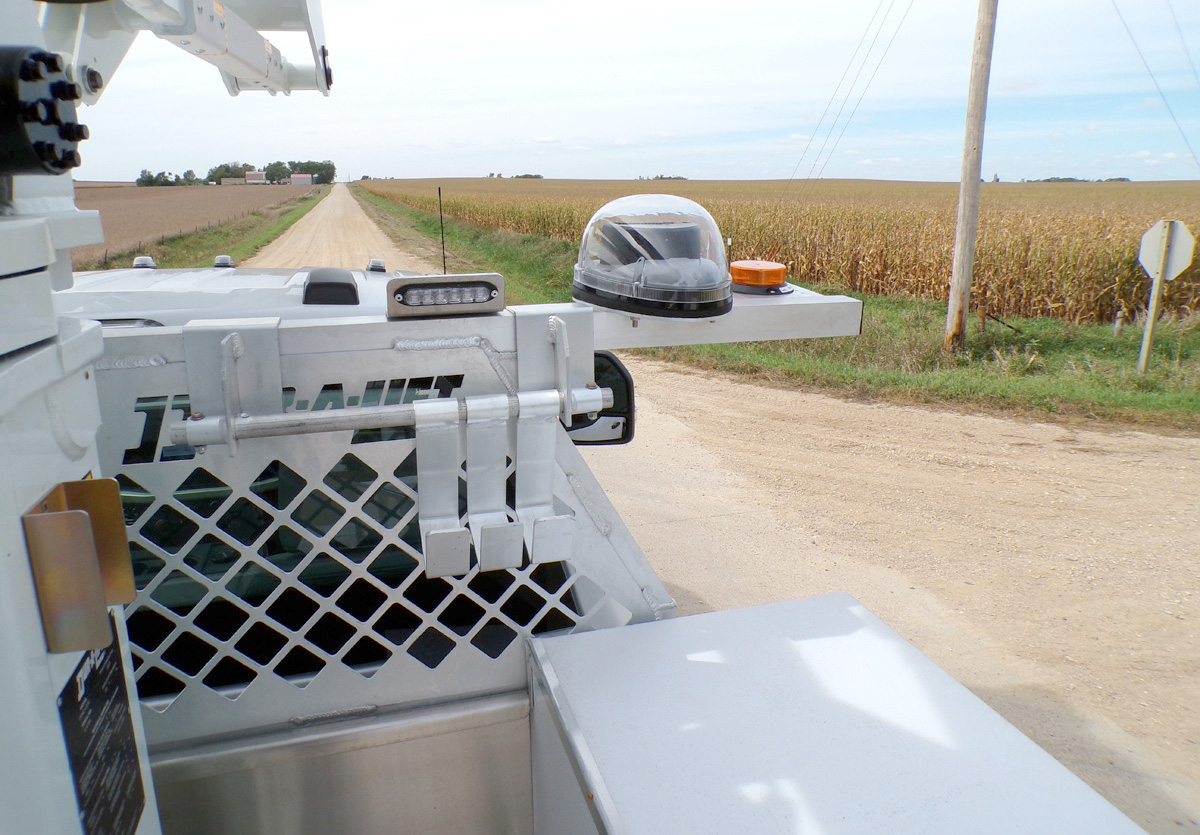

LED SPOTLIGHTS FOR PRECISION WORK

This build features LED spotlights, designed to provide excellent visibility and greater control. They give operators the confidence to work safely and efficiently, even in low-light conditions.

The DPM2-40DU is part of Dur-A-Lift’s DPM2 series—a line of telescopic articulating bucket trucks designed to deliver flexibility and performance on the job. With material-handling capabilities or the option of a double basket, this series offers working heights from 43 to 59 feet, making it a dependable choice for a wide range of industries and applications.

Each truck can be tailored to fit the work at hand, with choices like fiberglass or aluminum baskets, insulated or non-insulated builds, and a variety of chassis, body, and tailshelf configurations.

For added productivity, the series features a rotating, top-mounted jib and winch that can lift up to 1000 pounds—ideal for lifting and positioning materials with precision while crews stay focused on getting the job done. It’s a combination of smart design and durable construction that keeps the DPM2 series working as hard as you do.
