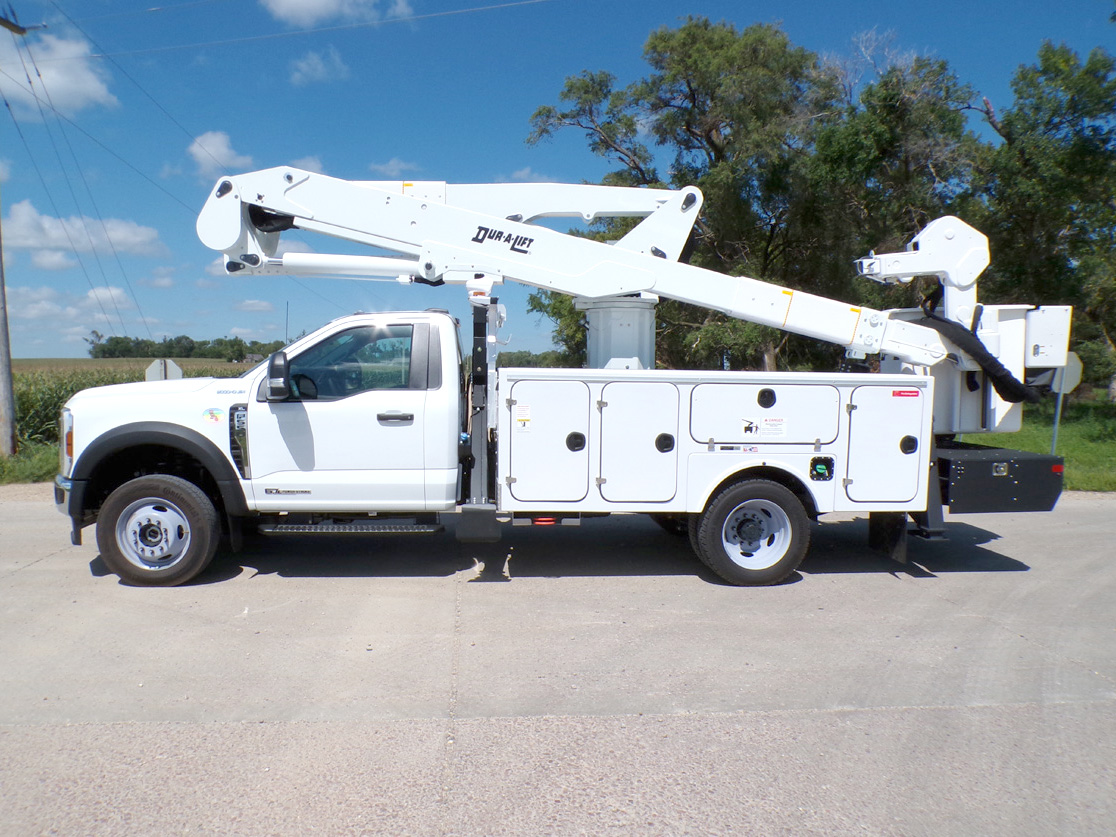

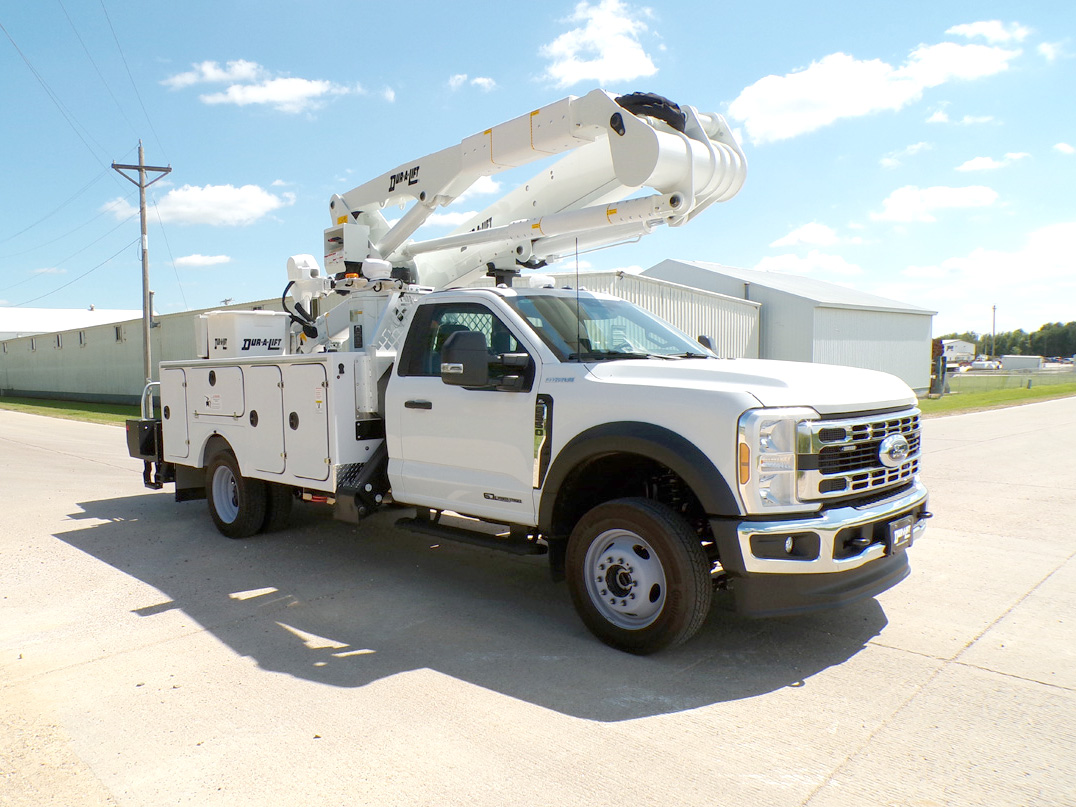

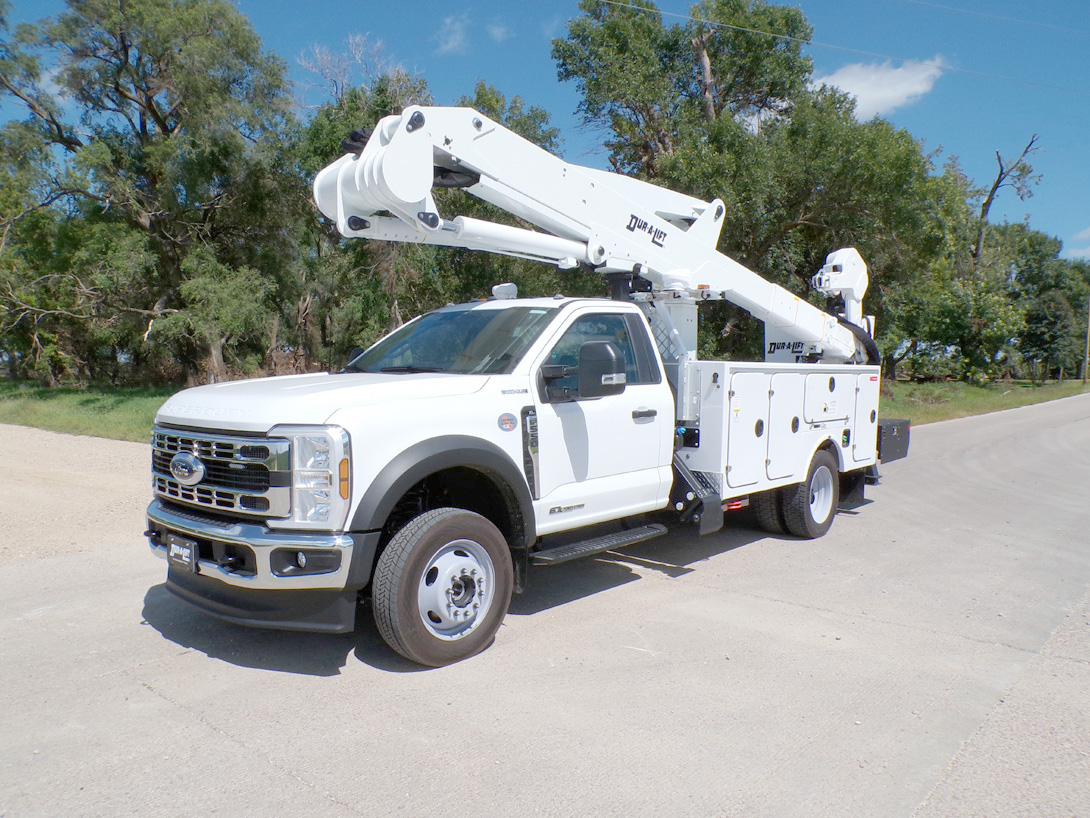

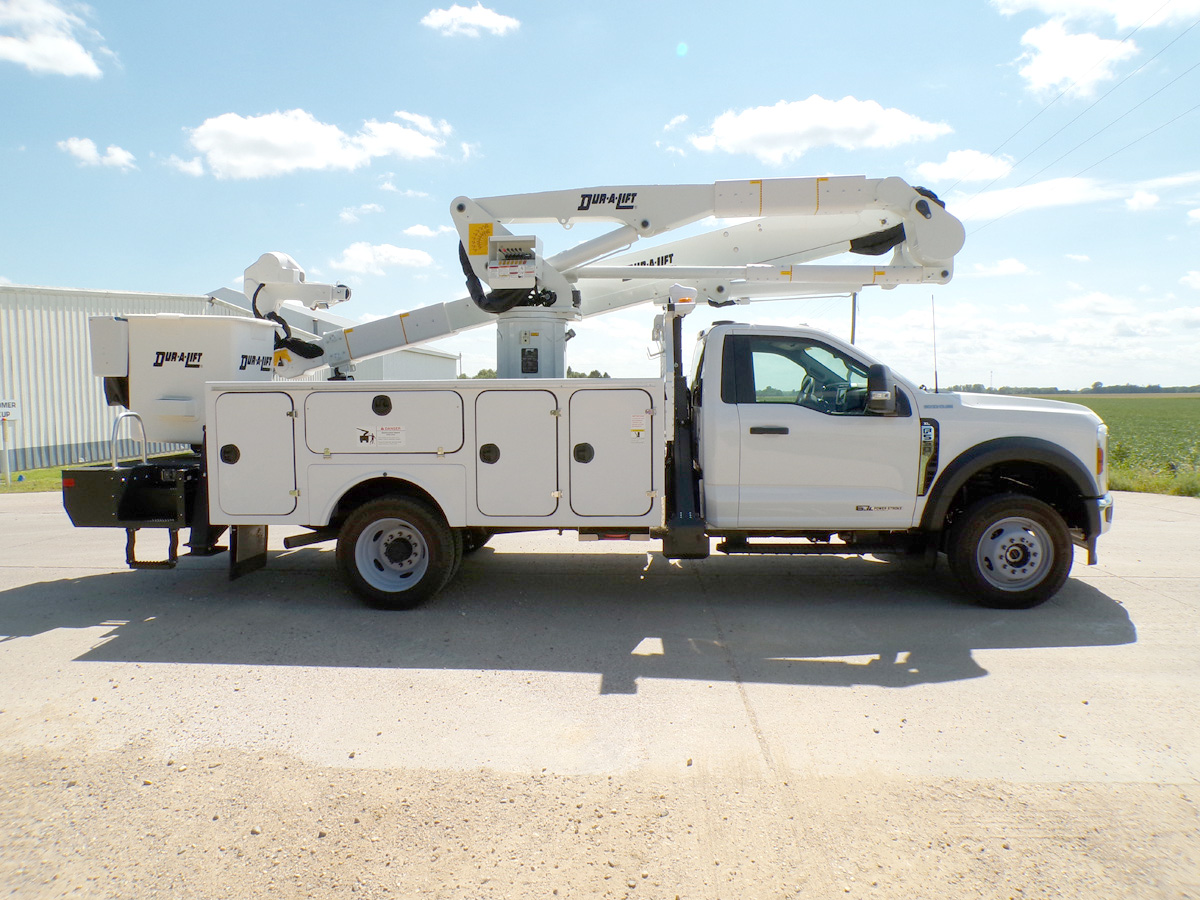

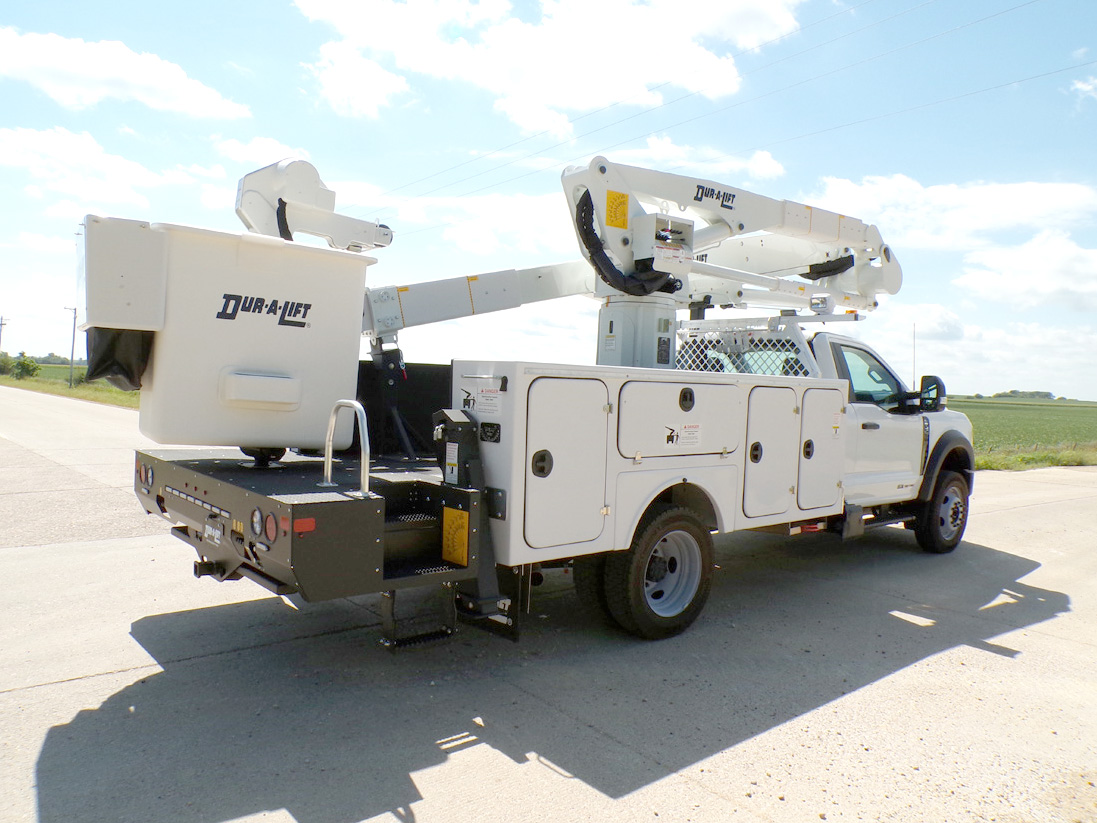

BUCKET TRUCK BUILD
Aerial: Dur-A-Lift DPM2-47DU – #4254

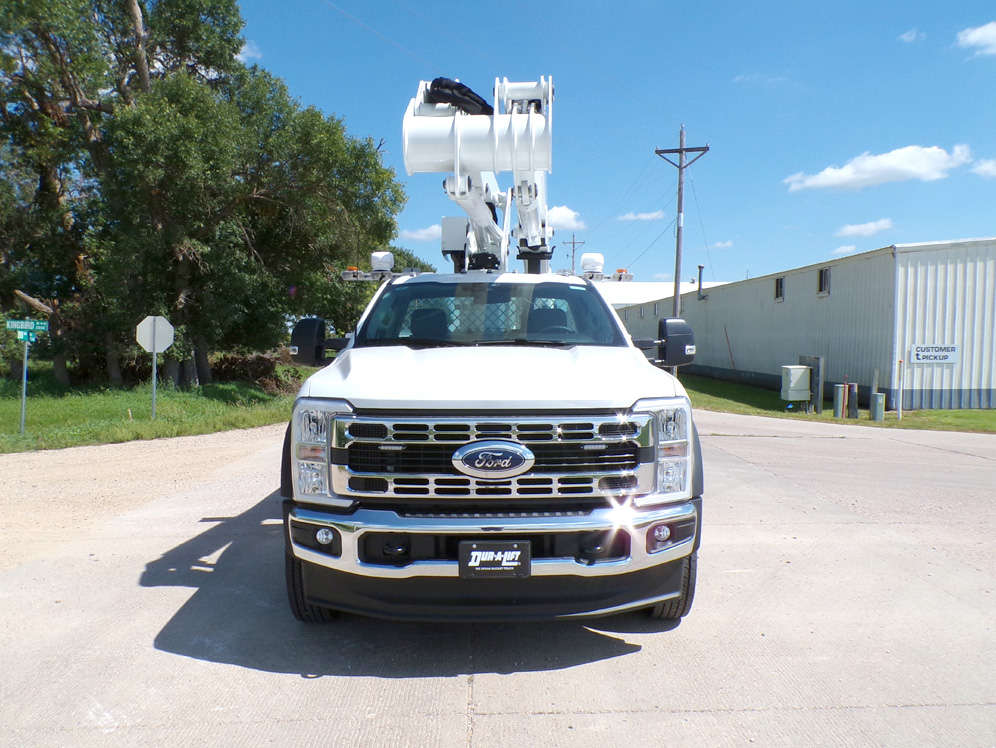

Chassis: Ford F550

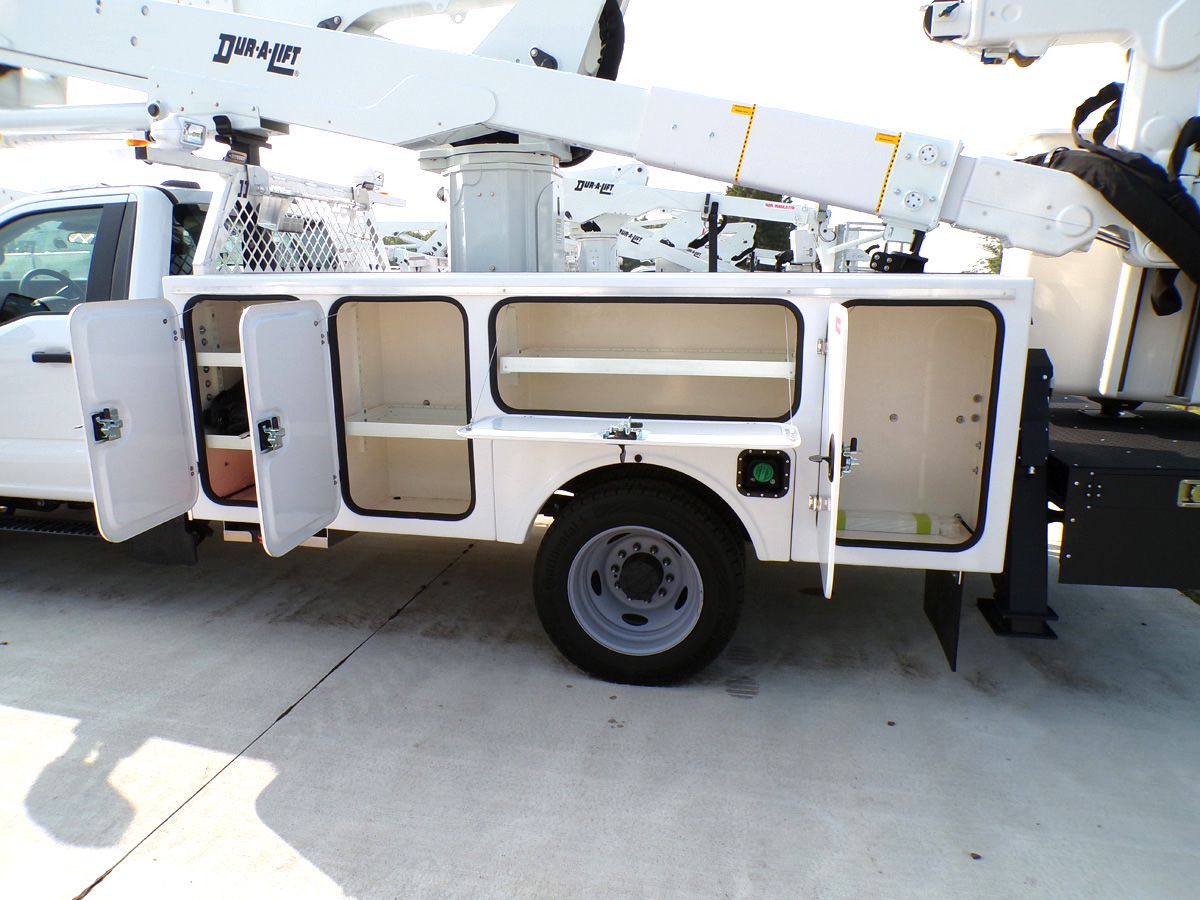

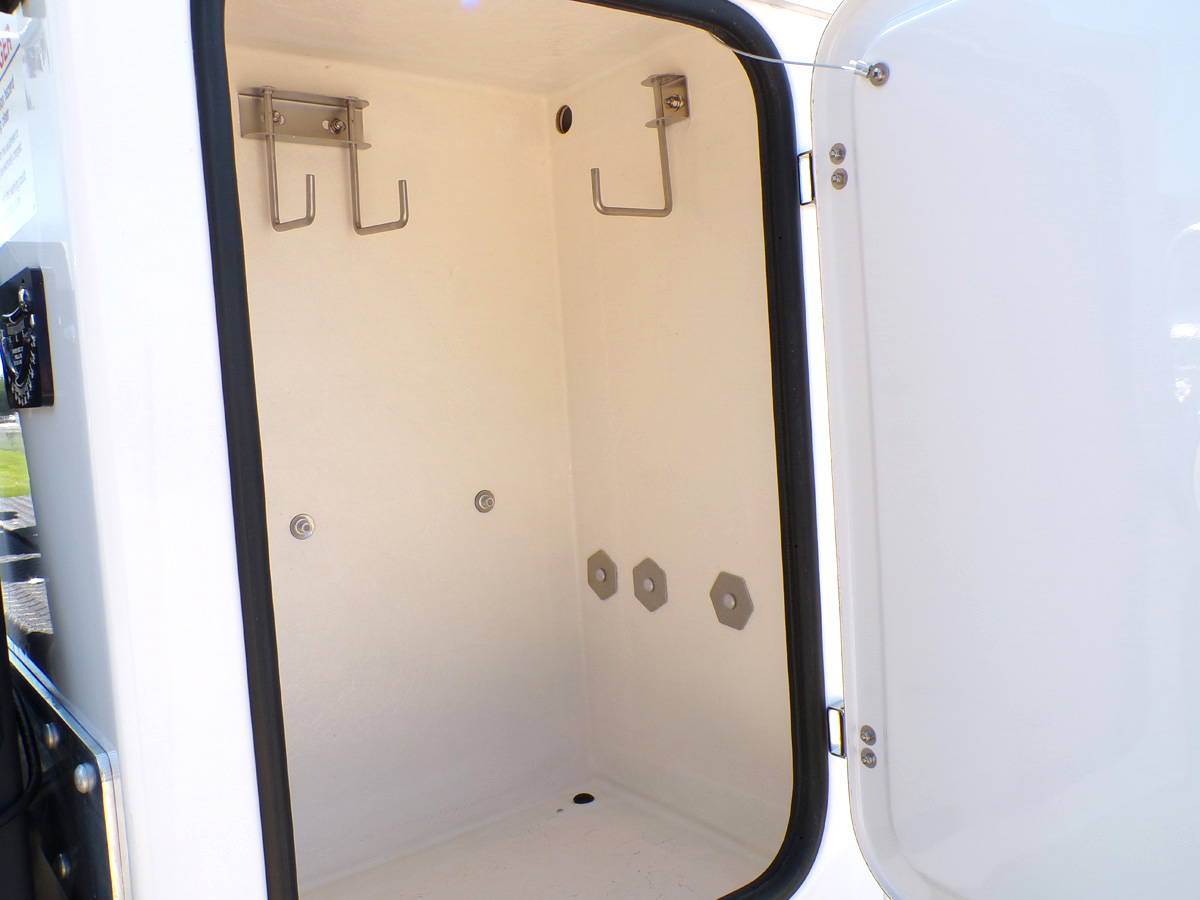

Body: Tafco Equipment Service Body, 126″

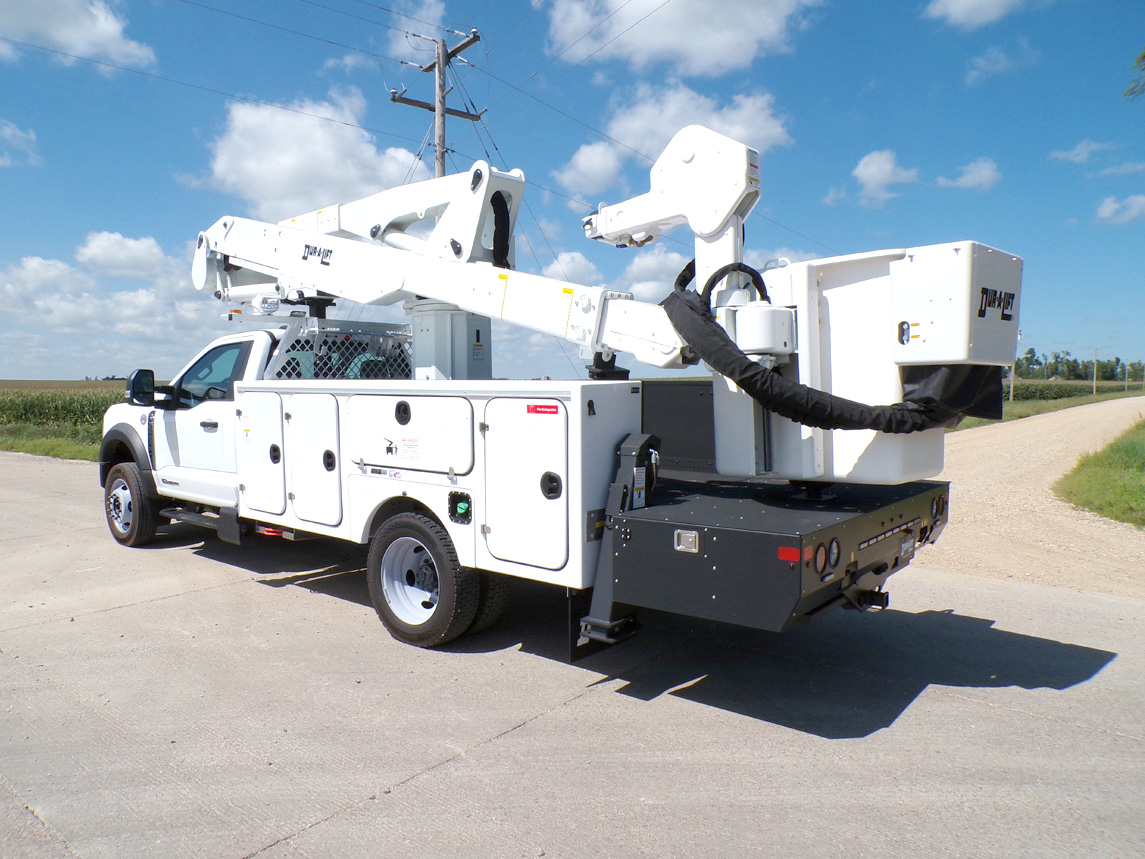

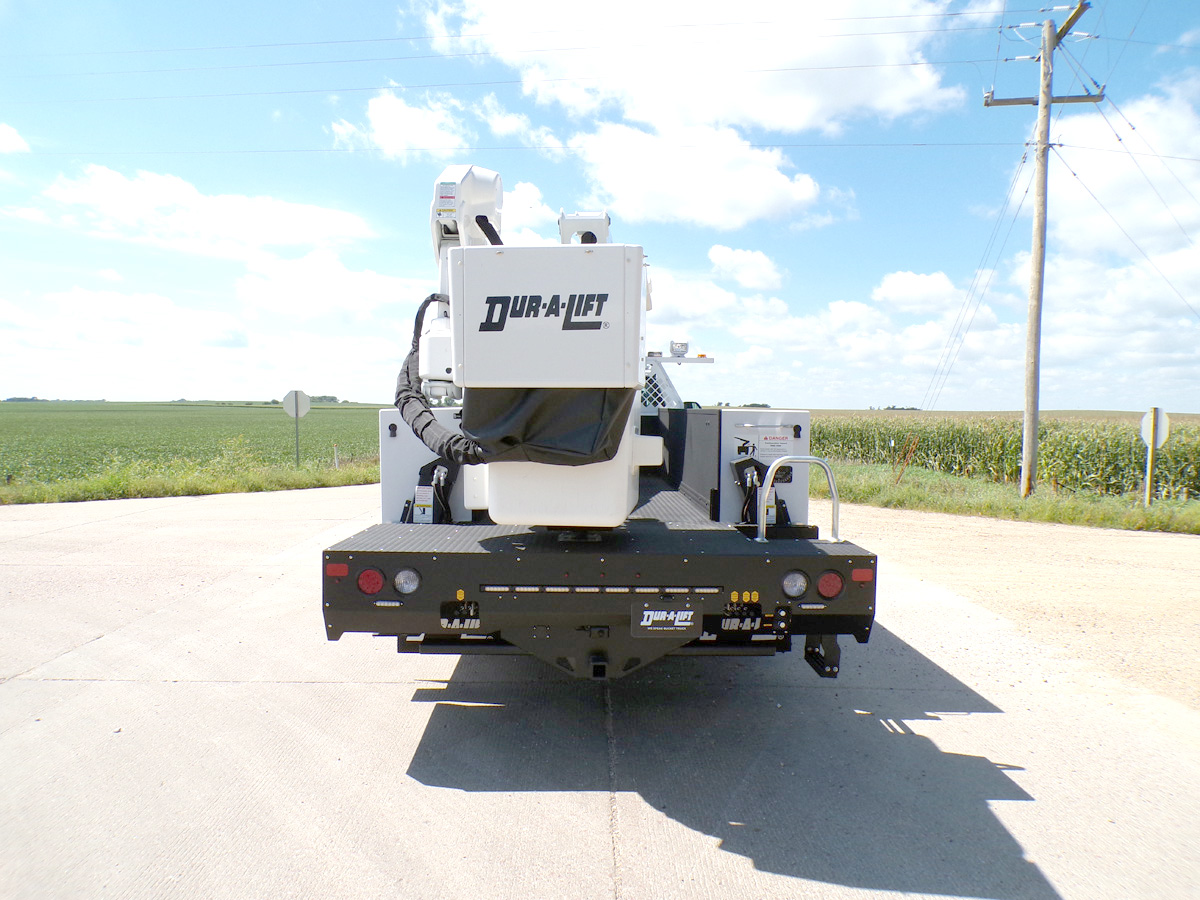

Additional Specs: Dur-A-Lift DPM2-47DU | 54′ working height, 31’6″ side reach | telescopic articulating, material handling bucket truck | insulated, Category C | 24″x24″ fiberglass basket with step | Tafco Equipment Service Body, 126″ | Ford F550, 4×4, Power Stroke V8 Turbo Diesel, 19,550 GVWR | 36″x94″ steel tail shelf with through box assembly | aluminum headache rack
Request A Quote
Confident lifting at elevated reach.
The DPM2-47DU is a telescopic articulating, Category “C” 46kV insulated aerial lift offering 54 feet of working height. It is equipped with a material-handling jib and winch (DU or MH configurations) capable of handling up to 1,000 lbs. The unit incorporates mid-mount A-frame outriggers and modified rear A-frame outriggers for enhanced stability. The jib rotates 320 degrees with 10 locking positions, while a 22″ basket elevator provides additional vertical reach. Mounted on a Ford F550 Diesel 4×4 chassis (84″ CA, 19,500 GVWR, 7,500 GAWR front axle) with a Tafco-Fibre 126″ body, this DPM2-47DU bucket truck build offers reliable performance for material handling and elevated work.
Heavy-duty handling. Smooth operation.

The DPM2-47DU combines 54 feet of insulated Category C reach with a 1,000 lb. material-handling jib and winch, giving operators the strength and height to handle demanding jobs.

The DPM2-47DU is part of Dur-A-Lift’s DPM2 series—a line of telescopic articulating bucket trucks designed to deliver flexibility and performance on the job. With material-handling capabilities or the option of a double basket, this series offers working heights from 43 to 59 feet, making it a dependable choice for a wide range of industries and applications.
Each truck can be tailored to fit the work at hand, with choices like fiberglass or aluminum baskets, insulated or non-insulated builds, and a variety of chassis, body, and tailshelf configurations.
For added productivity, the series features a rotating, top-mounted jib and winch that can lift up to 1000 pounds—ideal for lifting and positioning materials with precision while crews stay focused on getting the job done. It’s a combination of smart design and durable construction that keeps the DPM2 series working as hard as you do.
