Material Handling

◼ Top-mounted jib/winch, 1000#
◼ Insulated or non-insulated
◼ Fiberglass or aluminum basket
◼ 2 basket size options (DU, MH)
◼ 180-degree basket rotator
◼ Basket elevator option

Max working height / side reach:
    DPM2-52: 59′ / 31’6″
    DPM2-47: 54′ / 31’6″
    DPM2-40: 47′ / 31’6″
    DPM2-36: 43′ / 27’6″

◼ Top-mounted jib/winch, 1000#
◼ Insulated or non-insulated
◼ Fiberglass or aluminum basket
◼ 2 basket size options (DU, MH)
◼ 180-degree basket rotator
◼ Basket elevator option

Max working height: 67′
Max side reach: 39′ 2″

◼ Auxiliary winch lifts up to 150#
◼ 36″x60″ aluminum basket
◼ Bottom mount basket
◼ Insulated or non-insulated
◼ 180-degree basket rotator

Max working height / side reach:
    DPM3-56: 60’8″ / 29’7″
    DPM3-51: 56’6″ / 30’6″
    DPM3-44: 49’5″ / 31’3″
    DPM3-40: 45’7″ / 27’3″

◼ Side-mounted jib/winch, 1000#
◼ Insulated or non-insulated
◼ Fiberglass or aluminum basket
◼ 2 basket size options (DU, MH)
◼ 180-degree basket rotator

Max working height / side reach:

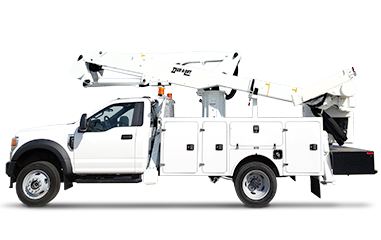

    DPM-52: 57′ / 31’6″
    DPM-47: 52′ / 31’6″
    DPM-40: 45′ / 31’6″
    DPM-36: 41′ / 27’6″

◼ Telescopic, material handling
◼ Top-mounted jib and winch, 1000#
◼ Insulated or non-insulated
◼ Fiberglass or aluminum basket
◼ 2 basket size options (DU, MH)
◼ 180-degree basket rotator
◼ Basket elevator option

Max working height: 39′
Max side reach: 25’4″

◼ Telescopic articulated or telescopic
◼ Non-insulated
◼ Hot-dipped, galvanized basket
◼ 400# of side pull, 50# of down pull
◼ Fairleads for cable lashing
◼ Direct communication between operator and driver
◼ Operate in stationary and mobile mode

Available in two sizes!

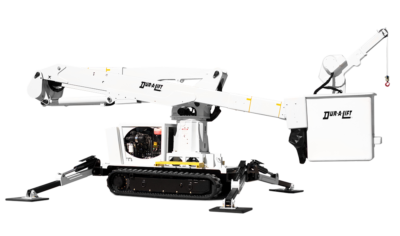

The ultimate tracked aerial lift. This machine is able to climb a 40 degree slope and can wade through 3 feet of water. Can be used as a single person material handling basket or as a double person personnel lift. Working heights up to 67 feet.

◼ Telescopic, material handling
◼ Side-mounted jib and winch, 1000#
◼ Insulated or non-insulated
◼ Fiberglass or aluminum basket
◼ 2 basket size options (DU, MH)
◼ 180-degree basket rotator

Max working height: 37′
Max side reach: 25’4″
