Aerial Lift Features
Working Performance
- Working height up to 42’; side reach up to 26’5”
- 24”× 24” fiberglass crawl-thru basket; 24”x30” upgrade option
- 400 lb basket capacity
- 370° rotation; continuous rotation optional with full pressure controls
- Engine start/stop from basket
- Maintenance-free bushings
- One-year parts & labor warranty. Ask about extended warranty.

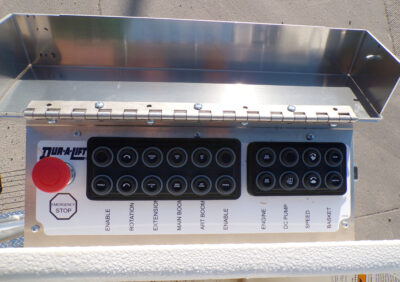

Control Options

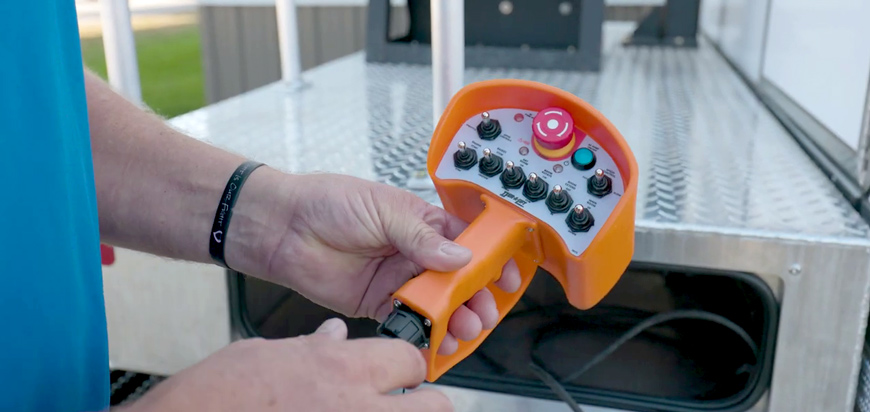

- Proportional CANbus (PC) — Smooth, precise electronic control with optional joystick.
- Full Pressure (FP) — Reliable open-center hydraulic controls with options like lower remote controls, start/stop switch, power stow, and throttle advance.
Fiber Splicing Body
Composite Construction
- Intelli-Core™ composite body
- R11 floor, R9 walls, R15 roof
- Welded aluminum sub-frame
- Non-skid flooring

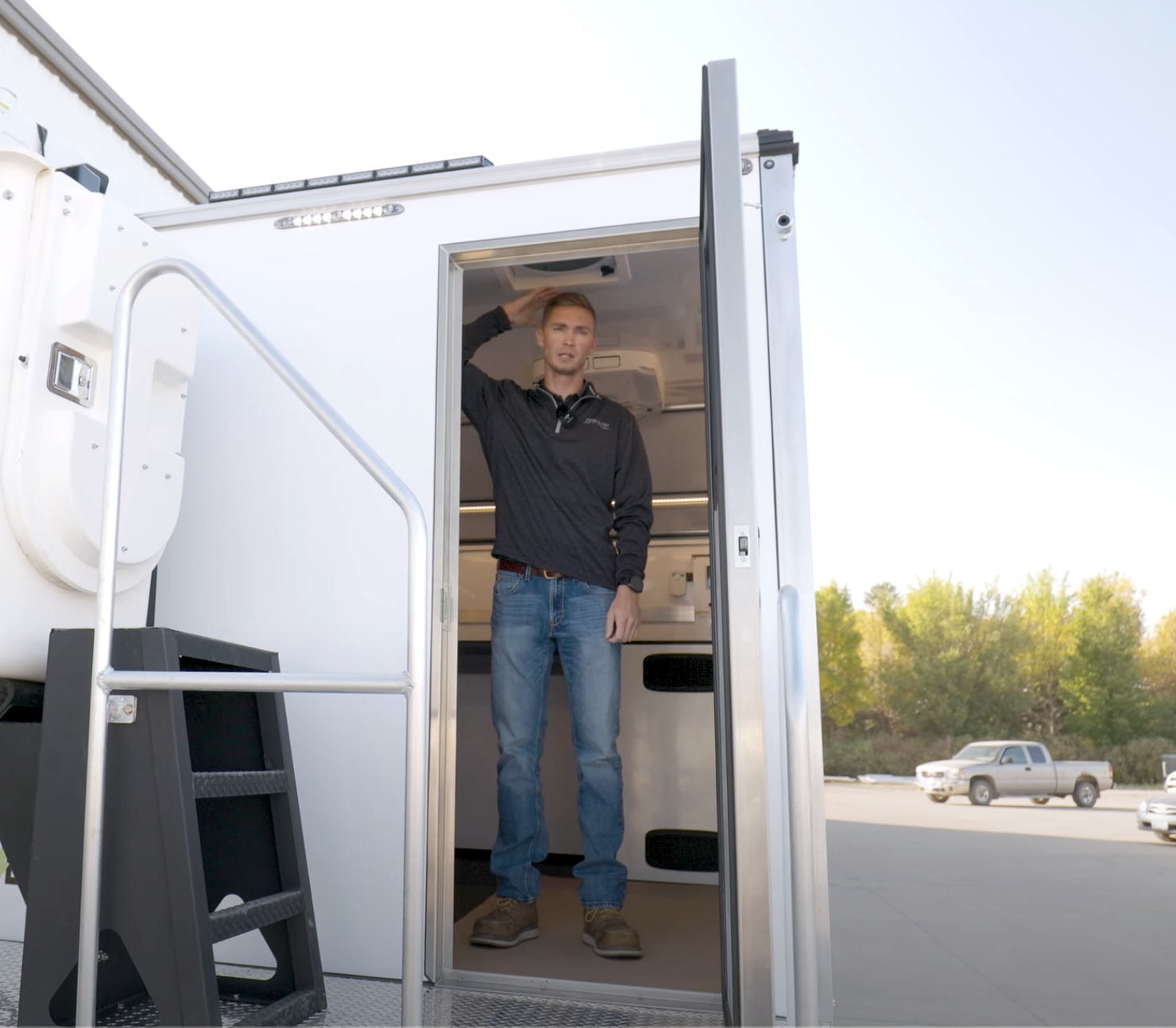

- Walk-in rear door
Climate-Controlled Interior
- 15K BTU A/C with heat pump
- 1500 W electric heater
- Electric reversing roof fan
- Comfortable, stable, all-season temperature control.
Clean, Quiet Power

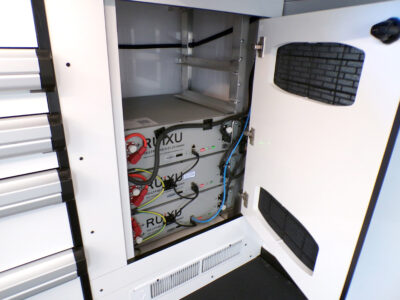

- 10.2 kWh lithium E-Drive system (expandable with 5.1 kWh module)
- 45-amp compatible power center
- 30-amp shore-power plug
- Bluetooth switching
- Generator-free, emission-free operation.
Lighting & Connectivity
- All-LED interior and exterior lighting
- Perimeter work lights
- USB charging ports, 110V outlets, 12V outlets
- Beacon lights, strobes, rear traffic advisor

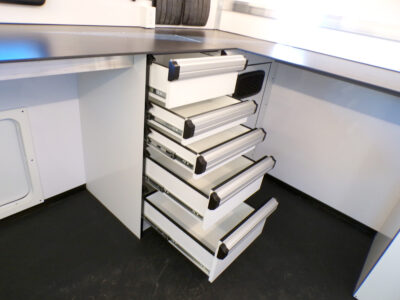

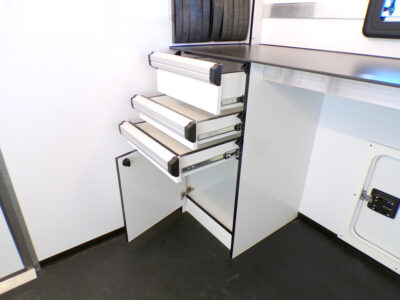

Smart Storage & Access
- Multiple cabinet layouts
- Base and upper storage options
- Dedicated 16” × 16” cable entry door
- Optional: steps, grab handles, conduit tubes, mudflaps, tool boxes

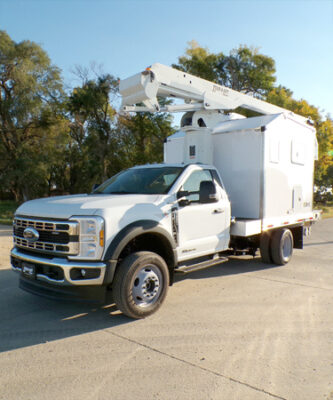

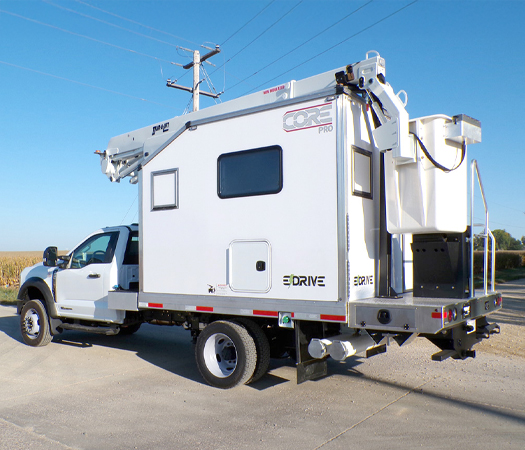

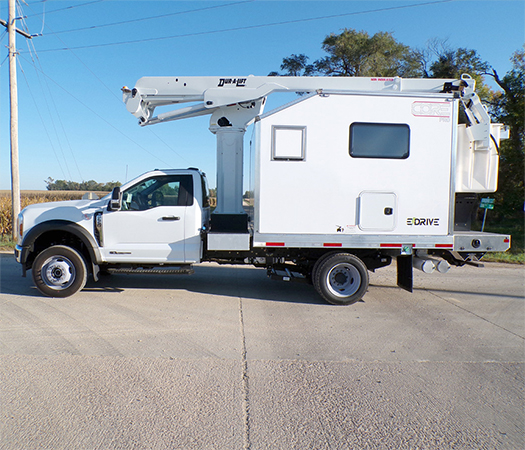

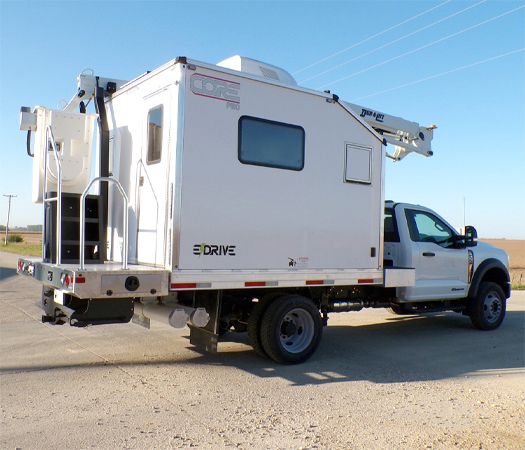

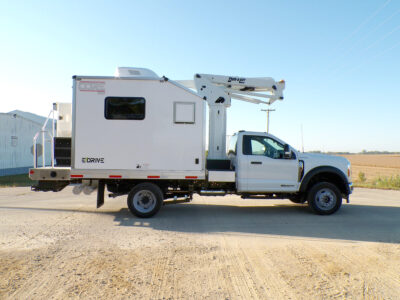

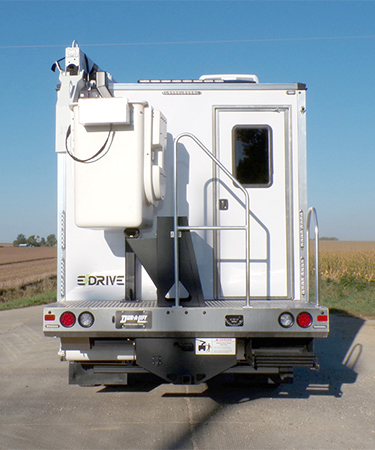

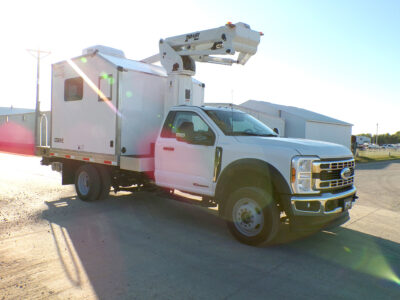

DTA2S-37PC Splicer Build
Bucket trucks built for you.
What you’re looking at is more than just a truck—it’s a solution.
Want one built for your operation? Let’s talk specs.
